AS series
AudioSystem Italy AS serie
AS4180
4 ohms stereoWatt RMS 14.4 Volt 90 x 4
2 ohms stereoWatt RMS 14.4 Volt 130 x 4
4 ohm monoWatt RMS power 14.4 Volt 260 x 2
High/low input Minimum
load impedance of 2 ohms
Frequency response 5 Hz – 25,000 Hz
Filter: HP 15-500Hz LP 50-4000Hz BP 15-4000Hz Hz
Filter Depth: 12 dB / oct Bass Boost 0 + 12 (45Hz)
INPUT SENSITIVITY: Volt RMS 0.2 V to 5 V
afmetingen: 350 x 52 x 186 mm
gewicht 3.76 Kg

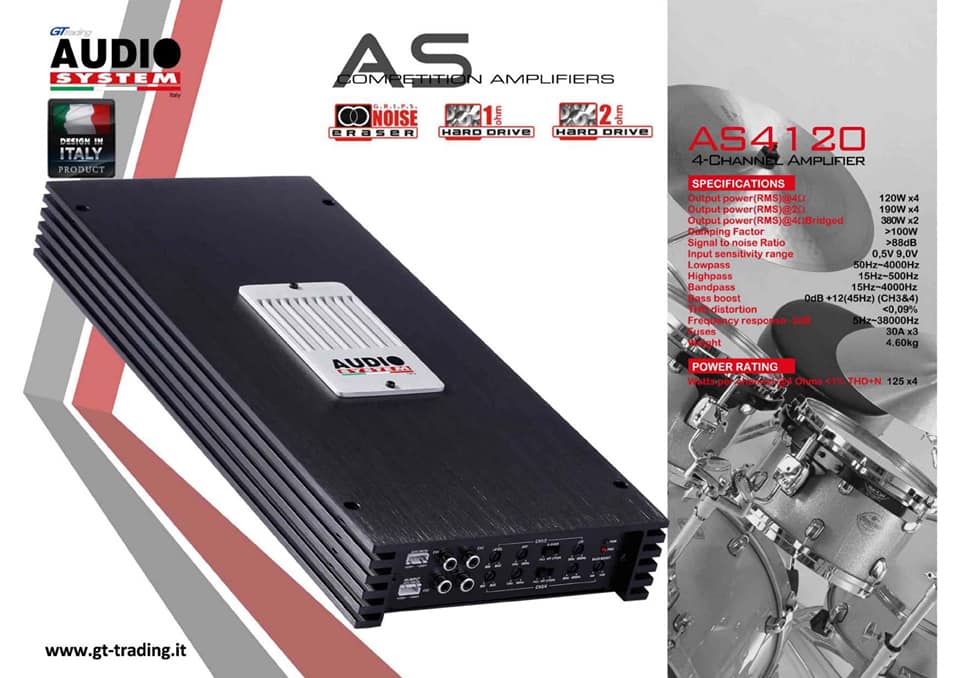

AS4120
4 Ohms stereowatt rms 14.4 Volt 120 x 4
2 ohms stereowatt rms 14.4 Volt 190 x 4
4 ohm monowatt rms power 14.4 Volt 380 x 2
high/low input
minimum load impedance of 2 ohms
frequency response 5 hz – 25,000 hz
filter: hp 15-500hz lp 50-4000hz bp 15-4000hz hz
filter depth: 12 db / oct
bass boost 0 + 12 (45hz)
input sensitivity: volt rms 0.2 V to 5 v
afmetingen: 440 x 52 x 230 mm
gewicht 4.60 Kg
AS300.2
4 ohm stereoWatt RMS - 11 to 14,4 Volt 300 x 2
2 ohm stereoWatt RMS - 11 to 14,4 Volt 600 x 2
4 ohm monoWatt RMS - 11 to 14,4 Volt 1300 x 1
high/low input
Inclusief BASS LEVEL remote
minimum load impedance of 2 ohms
frequency response 5 hz – 25,000 hz
filter: hp 15-500hz lp 50-4000hz bp 15-4000hz hz
filter depth: 12 db / oct
bass boost 0 + 12 (45hz)
input sensitivity: volt rms 0.2 V to 5 v
INPUT SENSITIVITY :
Volt RMS 0,5 V - 9 V
afmetingen: 430 x 51 x 185 mm
Gewicht: 4,40 Kg
