AU series
AudioSystem Italy AS serie

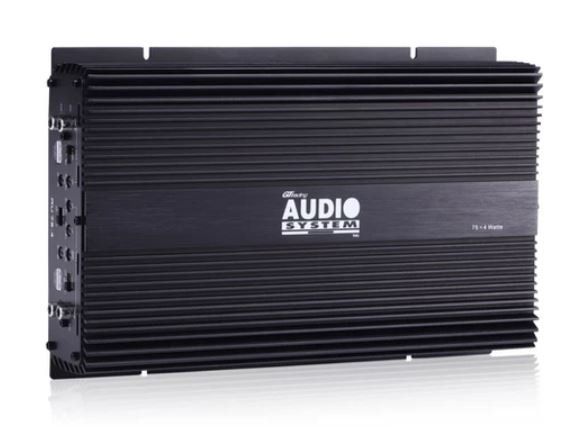

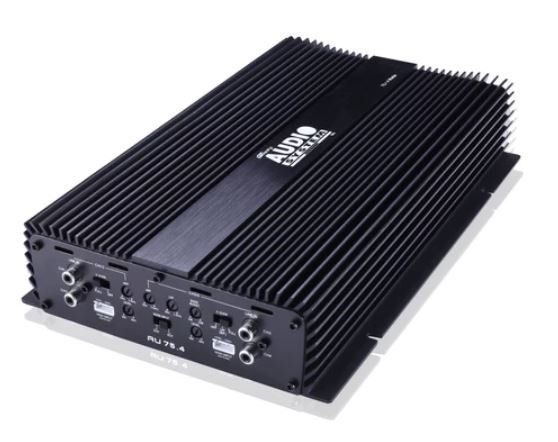

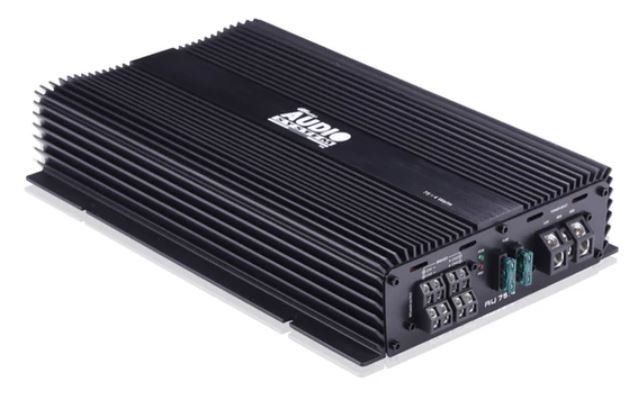

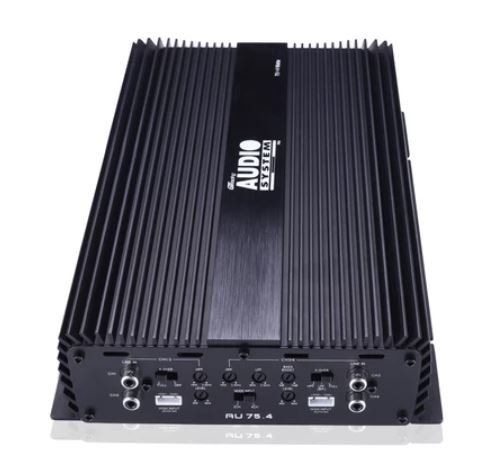

AU75.4
Quality 4-channel small amplifier with audiophile sound, Made in Italy! Manufactured in the STEG factory.
Power 4 ohms stereoWatt RMS 14.4 Volt 75 x 4
Power 2 ohms stereoWatt RMS 14.4 Volt 105 x 4
Power 4 ohms monoWatt RMS 14.4 Volt 210 x 2
Minimum load capacity: 2 ohms
Frequency range: 5 Hz - 25,000 Hz
Filters:
HP 15 - 3500Hz
LP 35 - 3500Hz
BP 15 - 4000Hz
Bass Boost 0 + 12 (45Hz)
Slope: 12 dB / oct
Input sensitivity: Volt RMS 0.2 V to 5 V
Dimensions: 195 x 59 x 302 mm
Weight: 2.9 Kg

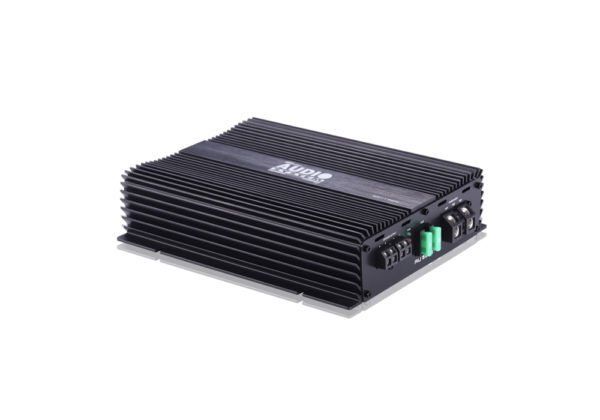

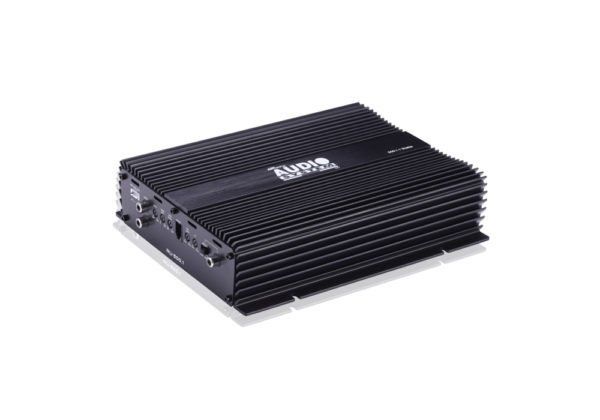

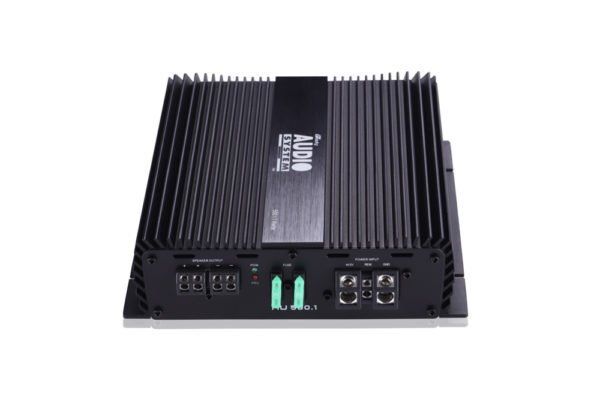

AU500.1
RMS Power 4 OHM / 14.4V THD <0.3%:
200W
RMS Power 2 OHM / 14.4V THD <0.3%:
350W
RMS Power 1 OHM / 14.4V THD <0.3%:
500W
Bridging option; link 2 amplfiers.
Input Sensitivity:
0.2-6V low level with RCA or
High level input with auto turn-on
LPF:
45-255Hz / 12dB/Oct
Frenuency Response:
10-180Hz
Subsonic Filter:
15-55Hz / 12dB/Oct
BassBoostLevel:
0-12dB @45Hz
S/N Ratio:
>90dB
Overheat temperature protection:
80°
Bass-remote included
Fuse 2x30A
Weight:
3.1Kg
Dimensions:
195 59 x232mm
