AWAVE Digital Sound Processors

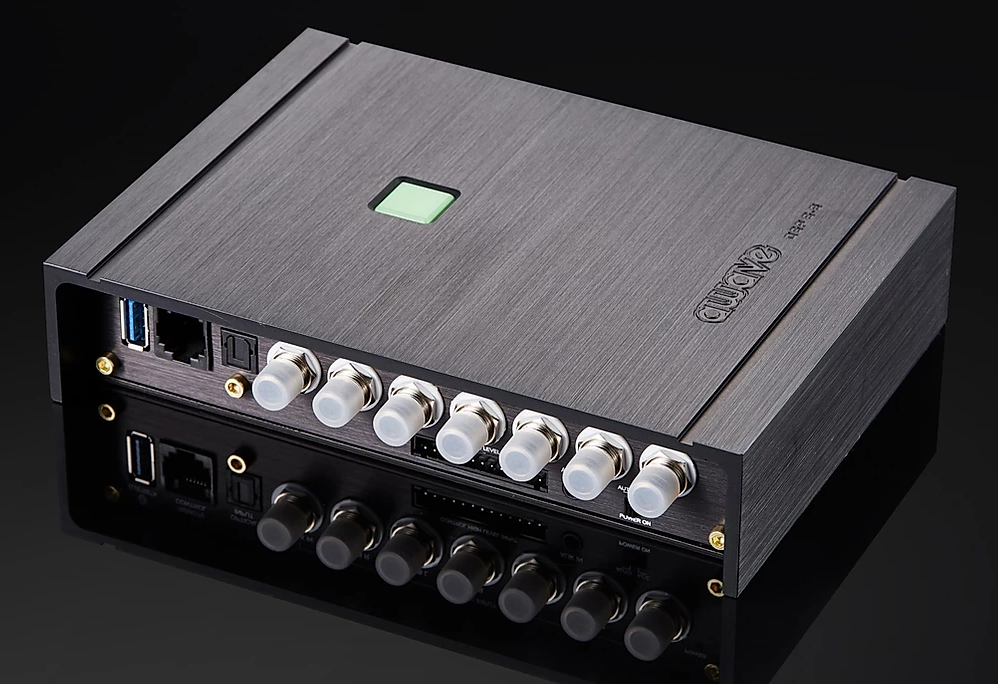

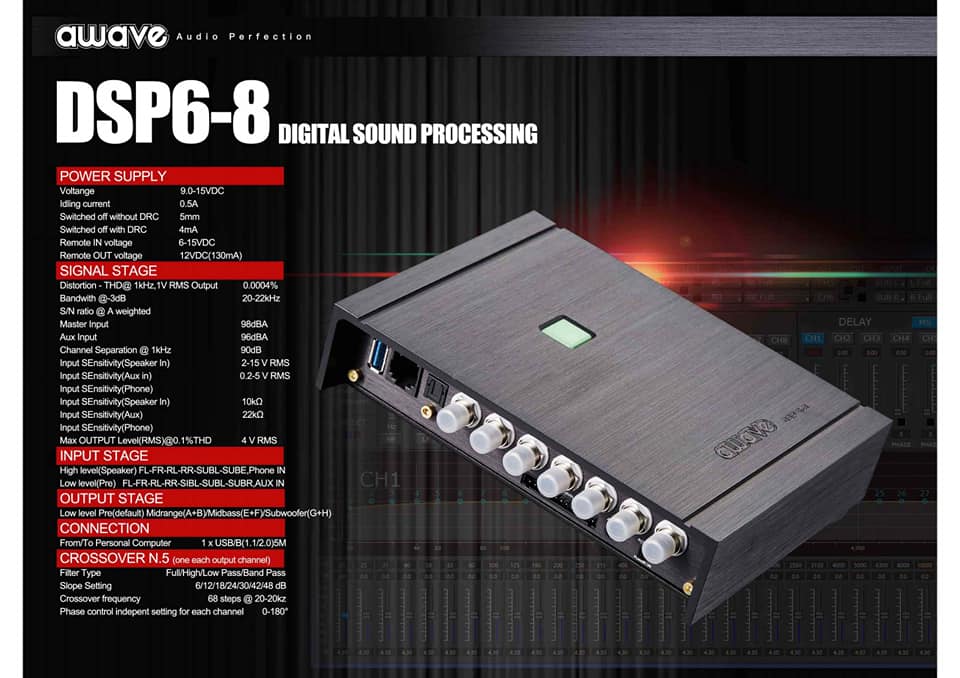

AWAVE DSP6-8
6-input and 8-output channels digital signal processor.
-32Bit 48Khz
-Time-Delay with 0.02 msec steps, insertion in cm, or msec.
-All settings are in real-time

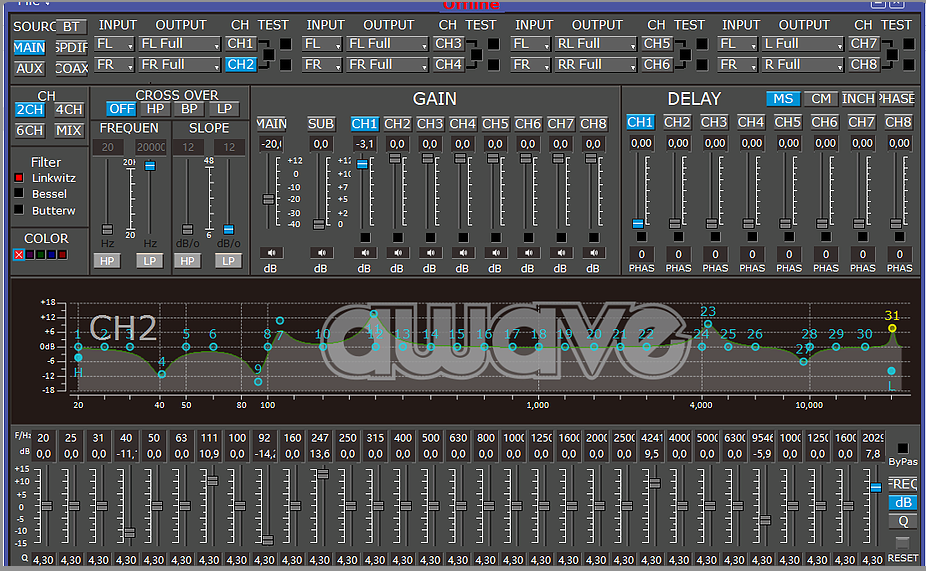

-USB connector for adjustments via PC for Windows only
-Low-Level or High-Level input with Auto-Sense (only in High-Level)
-Aux input with Auto-Fading for stereo signal, speakerphone and ---navigation
-8 presets
-Mixer matrix to mix and match input / output channels at will -SUM function (input) for active OEM systems / sources
-Operating voltage 9 - 15 Volts (max. 5 sec. Down to 6 Volts)
INPUT MODE: Low Level (LL) / High Level (HL)
MAX OUTPUT SIGNAL: 4Vrms
THD DISTORTION: <0.002% @ 1Vrms
FREQUENCY RESPONSE: 20Hz ÷ 22KHz (within -0.3dB)
- Optionele remote control
- Bluetooth streaming stick

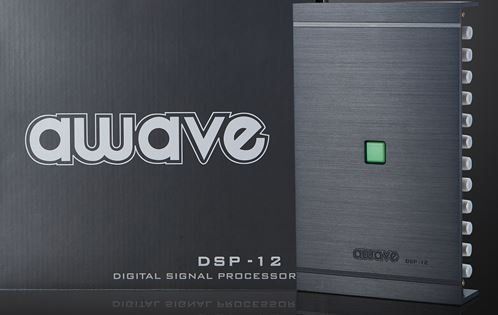

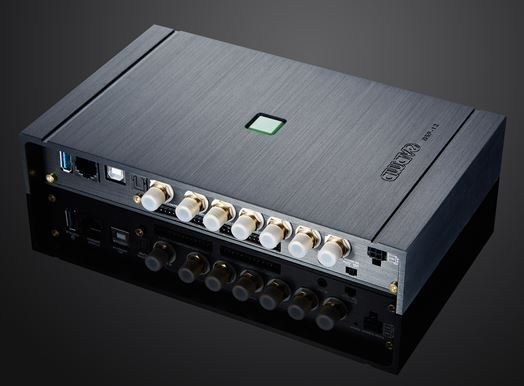

AWAVE DSP-12
6-input and 12-output channels digital signal processor.
-32Bit 48Khz
-Time-Delay with 0.02 msec steps, insertion in cm, or msec.
-All settings are in real-time

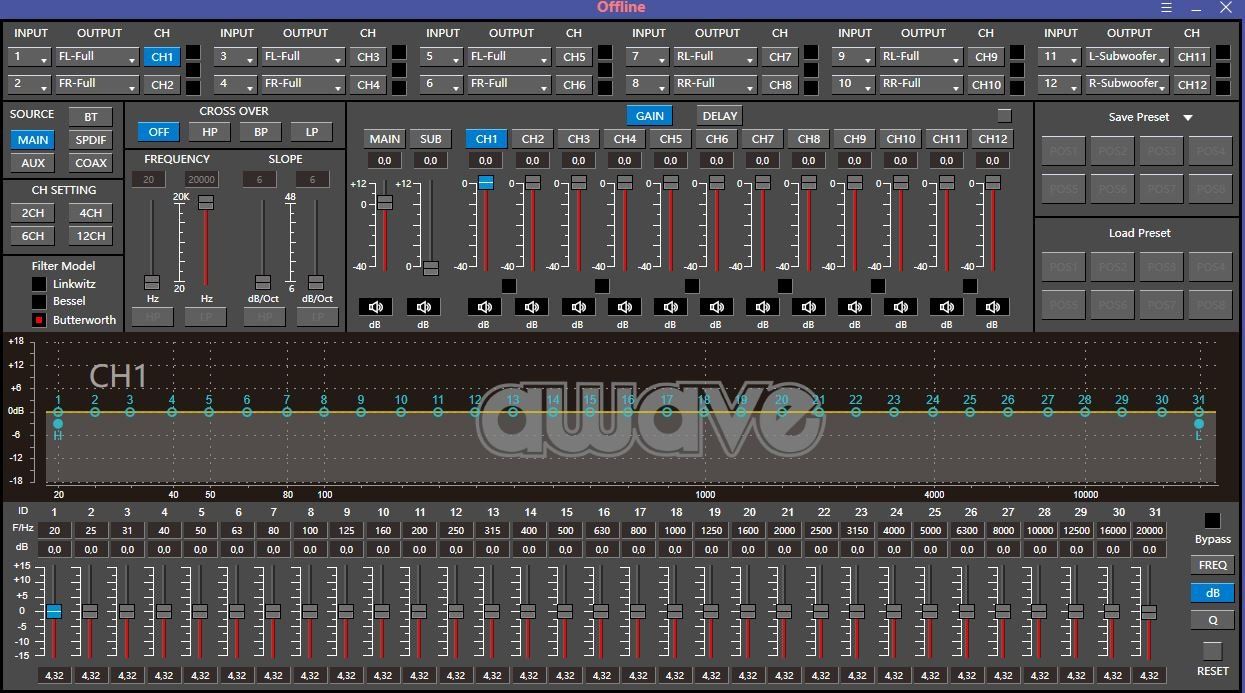

-USB connector for adjustments via PC for Windows only
-Low-Level or High-Level input with Auto-Sense (only in High-Level)
-Aux input with Auto-Fading for stereo signal, speakerphone and ---navigation
-8 presets
-Mixer matrix to mix and match input / output channels at will -SUM function (input) for active OEM systems / sources
-Operating voltage 9 - 15 Volts (max. 5 sec. Down to 6 Volts)
INPUT MODE: Low Level (LL) / High Level (HL)
MAX OUTPUT SIGNAL: 4Vrms
THD DISTORTION: <0.002% @ 1Vrms
FREQUENCY RESPONSE: 20Hz ÷ 22KHz (within -0.3dB)
- Optionele remote control
- Bluetooth streaming stick

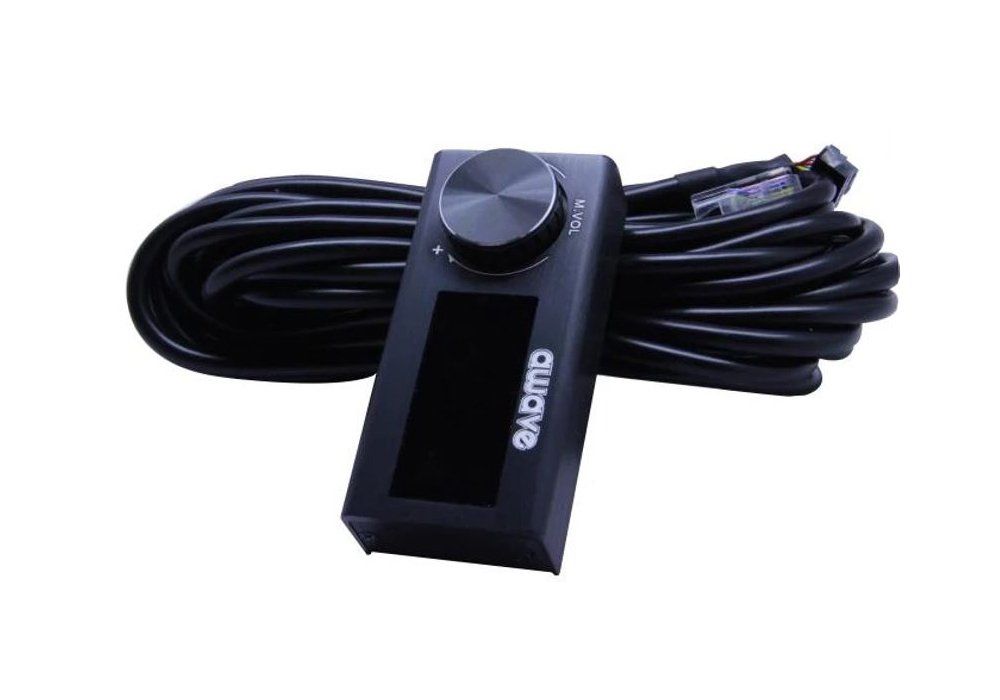

EXTERNAL DISPLAY / CONTROLLER FOR PRESETS AND MAIN CONTROLS.
MANAGE:
– SUBWOOFER
– PRESETS
– MUTE
– VOLUME MASTER
EASY TO INSTALL
SIZE: 72LX35PX20H
