STEG K-competition
Six extraordinary electronic, designed to meet the most demanding audiophiles and drive systems SPL competition. innovative amplifiers, capable of very high currents, insensitive to the lower load impedances, up to 2ohm bridged mono. elegant and sophisticated design, all aluminum chassis with integrated tunnels that the active cooling system. Built with quality materials, selected to enhance the most sophisticated installations and ensure the highest level of reliability. Extremely versatile, incorporating a wide range of functions associated with each other and able to configure complex audio systems, without the aid of external devices. Stabilized from 11 Volt, Watt many well-sounding, always. Support SERIALPOWER configuration: the stereo models are connected with each other to add the power of two units as it were a single amplifier. Incorporate a microprocessor that manages the complex system of protection and that, through the STEGLINK door, can communicate with the PC. Kcompetition is the new way to amplify STEG, destined once again to move forward any reference.

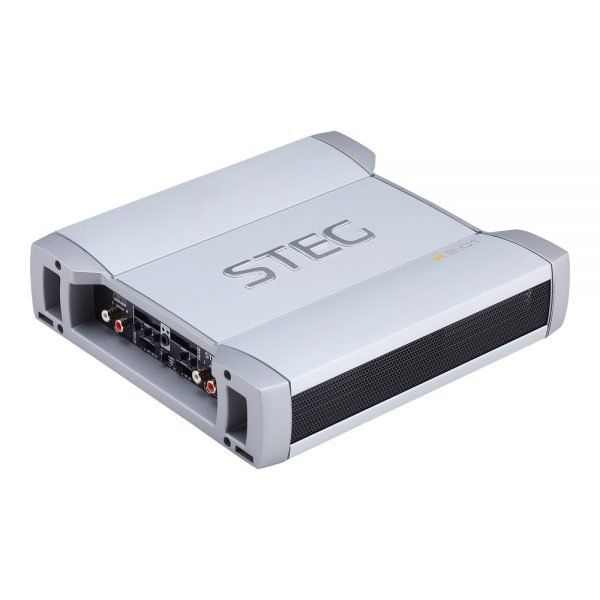

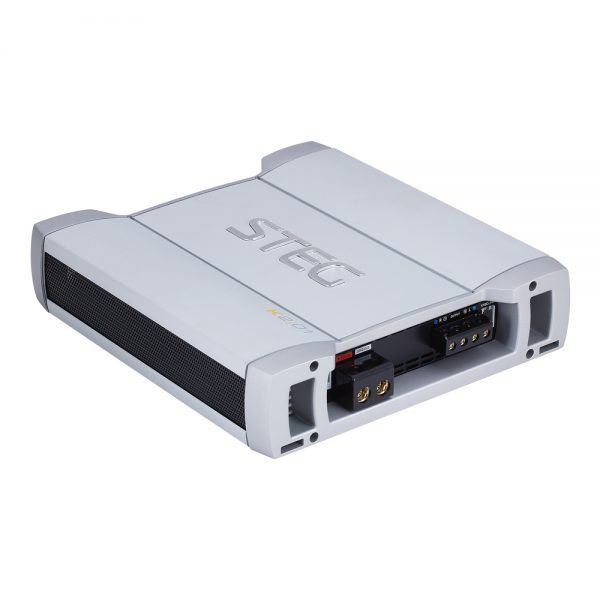

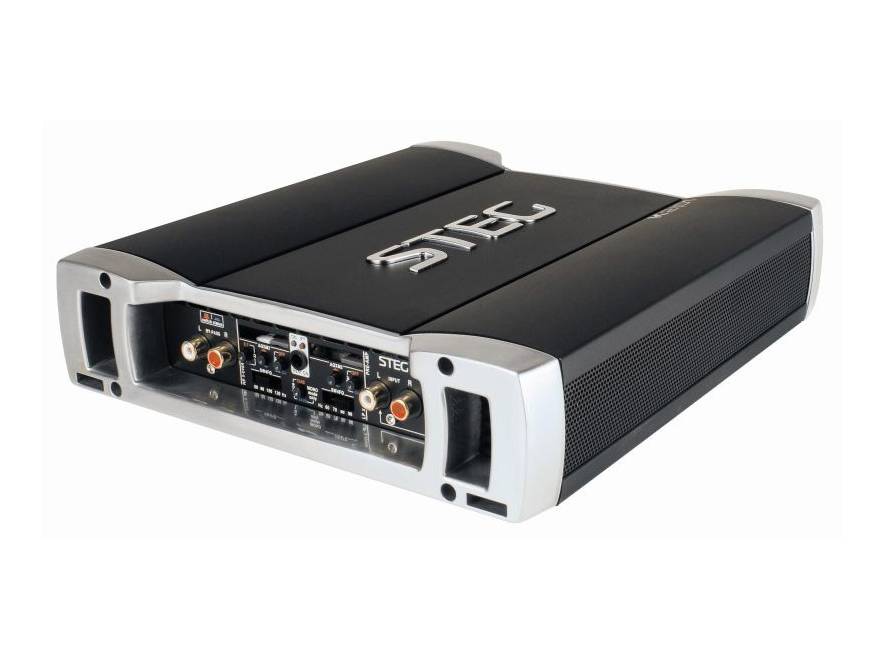

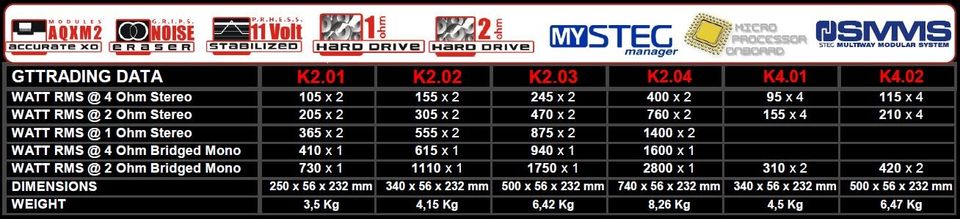

STEG K2.01
POWER:
Power 4 ohm stereoWatt RMS – 11 to 14,4 Volt 105 x 2
Power 2 ohm stereoWatt RMS – 11 to 14,4 Volt 205 x 2
Power 1 ohm stereoWatt RMS – 11 to 14,4 Volt 365 x 2
Power 4 ohm monoWatt RMS – 11 to 14,4 Volt 410 x 1
Power 2 ohm monoWatt RMS – 11 to 14,4 Volt 730 x 1
Power in serial power (2 unità in link) 4 ohm monoWatt RMS – 11 to 14,4 Volt 1460 x 1
INPUT SENSITIVITY:
Volt RMS 0,2 V – 5 V
DIMENSIONS:
250 x 56 x 232 mm
WEIGHT:
3,5 Kg
LET OP: KLEUR zwart

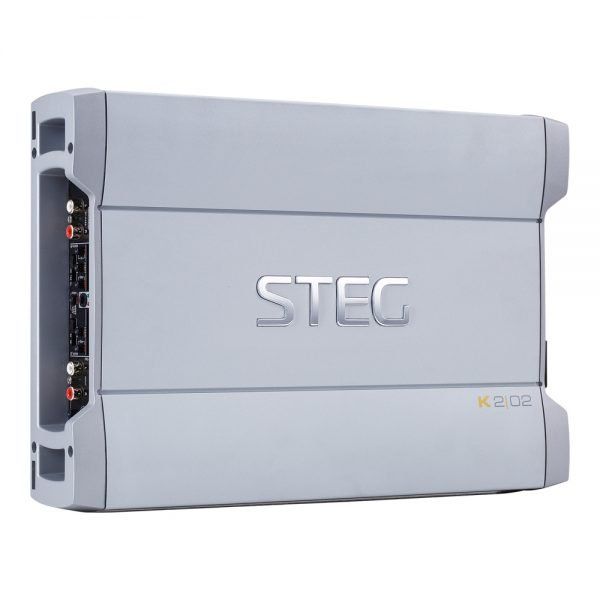

STEG K2.02
POWER:
Power 4 ohms stereoWatt RMS – 11 to 14.4 Volt 155 x 2
Power 2 ohms stereoWatt RMS – 11 to 14.4 Volt 305 x 2
Power 1 ohm stereoWatt RMS – 11 to 14.4 Volt 555 x 2
Power 4 ohms monoWatt RMS – 11 to 14.4 Volt 615 x 1
Power 2 ohms monoWatt RMS – 11 to 14.4 volts 1110 x 1
in serial output power (2 link units) 4 ohms monoWatt RMS – 11 to 14.4 volts 2200 x 1
SENSITIVITY ENTRANCE
Volts RMS 0.2 V – 5 V
DIMENSIONS:
340 x 56 x 232 mm
WEIGHT:
4.15 Kg
LET OP: KLEUR zwart

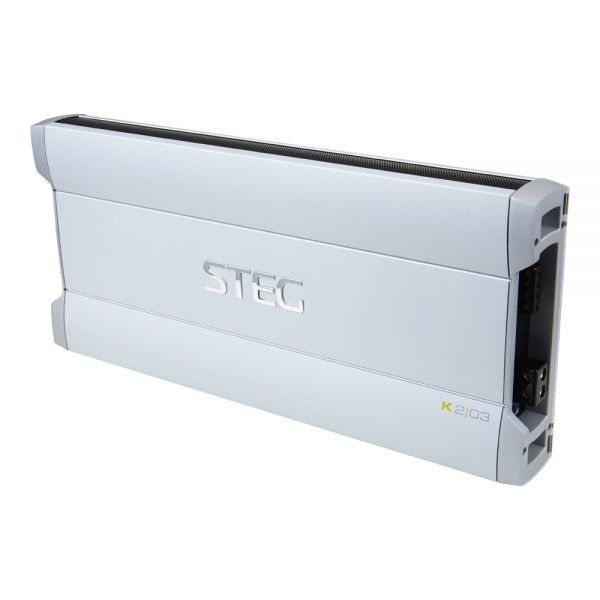

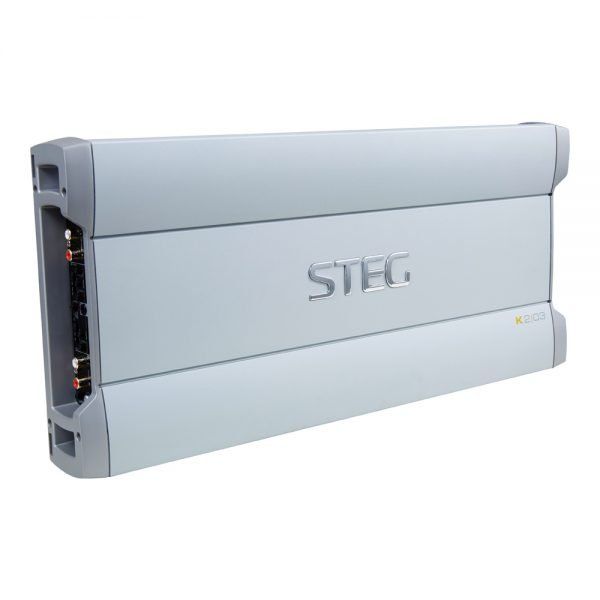

STEG K2.03
POWER:
Power 4 ohms stereoWatt RMS – 11 to 14.4 Volt 245 x 2
Power 2 ohms stereoWatt RMS – 11 to 14.4 Volt 470 x 2
Power 1 ohm stereoWatt RMS – 11 to 14.4 Volt 875 x 2
Power 4 ohms monoWatt RMS – 11 to 14.4 Volt 940 x 1
Power 2 ohms monoWatt RMS – 11 to 14.4 volts 1750 x 1
in serial output power (2 link units) 4 ohms monoWatt RMS – 11 to 14.4 volts 3500 x 1
SENSITIVITY ‘ENTRANCE:
Volts RMS 0.2 V – 5 V
DIMENSIONS:
500 x 56 x 232 mm
WEIGHT:
6.42 Kg
LET OP: KLEUR zwart
STEG K2.04
POWER:
Power 4 ohms stereoWatt RMS – 11 to 14.4 Volt 400 x 2
Power 2 ohms stereoWatt RMS – 11 to 14.4 Volt 760 x 2
Power 1 ohm stereoWatt RMS – 11 to 14.4 volts 1400 x 2
Power 4 ohms monoWatt RMS – 11 to 14.4 volts 1600 x 1
Power 2 ohms monoWatt RMS – 11 to 14.4 volts 2800 x 1
in serial output power (2 link units) 4 ohms monoWatt RMS – 11 to 14.4 volts 4800 x 1
SENSITIVITY ‘ENTRANCE:
Volts RMS 0.2 V – 5 V
DIMENSIONS:
640 x 56 x 232 mm
WEIGHT:
8,26 Kg
LET OP: KLEUR zwart
STEG K4.01
POWER:
Power 4 ohms stereoWatt RMS – 11 to 14.4 Volt 95 x 4
Power 2 ohms stereoWatt RMS – 11 to 14.4 Volt 155 x 4
Power 2 ohms monoWatt RMS – 11 to 14.4 Volt 310 x 2
SENSITIVITY ‘ENTRANCE:
Volts RMS 0.2 V – 5 V
DIMENSIONS:
340 x 56 x 232 mm
WEIGHT:
4.5 Kg
LET OP: KLEUR zwart

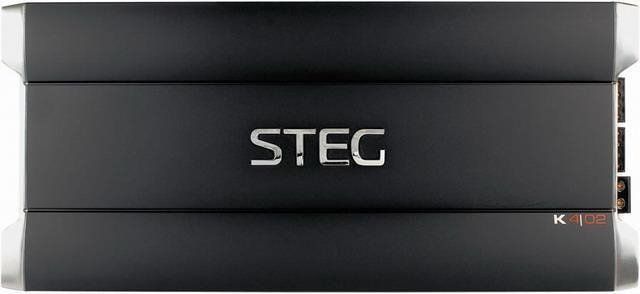

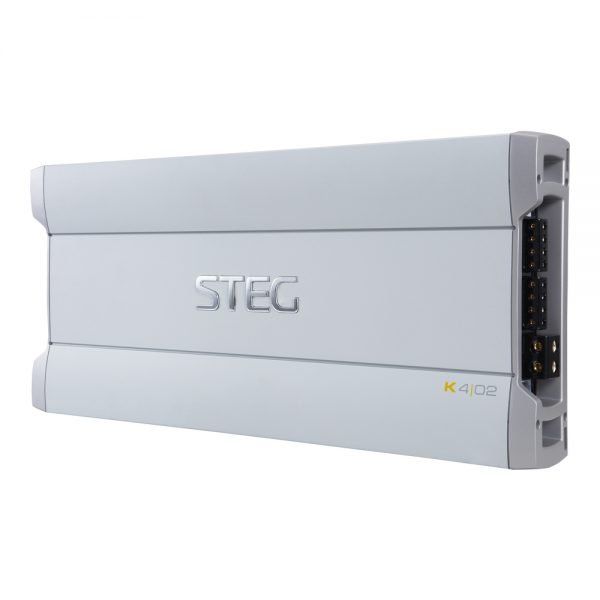

STEGK 4.02
POWER:
4x 115 Watt RMS @ 4 Ohm Stereo
4x 210 Watt RMS @ 2 Ohm Stereo
4x 320 Watt RMS @ 1 Ohm Stereo
2x 420 Watt RMS @ 4 Ohm Mono
2x 640 Watt RMS @ 2 Ohm Mono
Damping Factor @ 4ohm-1000
Interval input sensitivity V 0.2 to 5.0
Input impedance: Kohm 10
Filter type: HP / LP
Operating band Filter AQXM2 Hz 22-8500
Operating band Filter SW4FQ HP / LP Hz 60,80,100,120
Filter Slope dB / oct.: 12
Frequency Response: 3dB Hz 5-170000
THD @ 1 KHz - 90% rated power 4ohm 0.04
DIM distortion: 90% rated power 4ohm
SENSITIVITY ‘ENTRANCE:
Volts RMS 0.2 V – 5 V
DIMENSIONS:
340 x 56 x 232 mm
WEIGHT:
6,47 Kg
LET OP: KLEUR zwart
