SUBWOOFERS

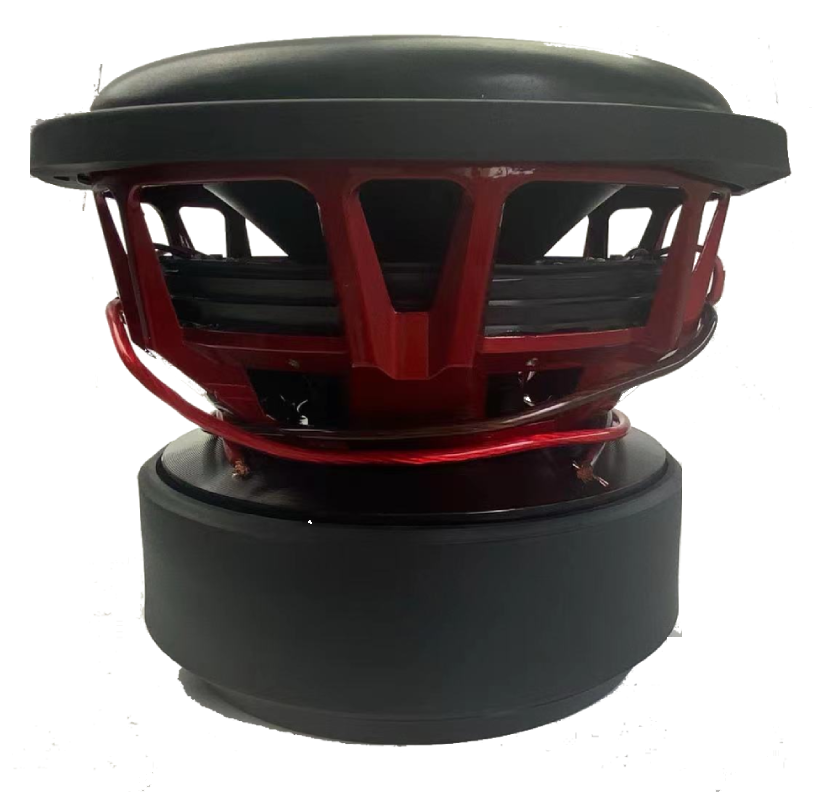

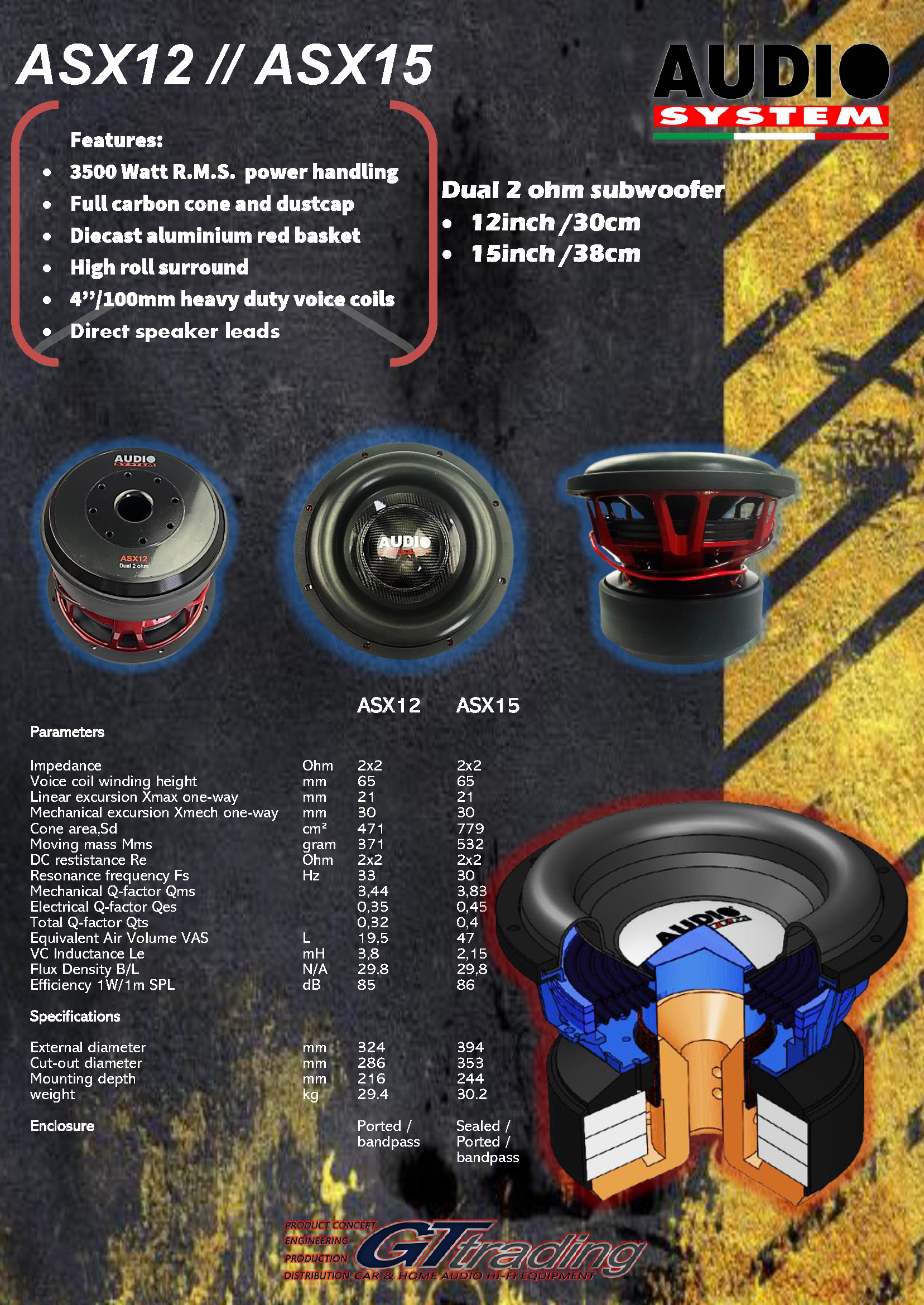

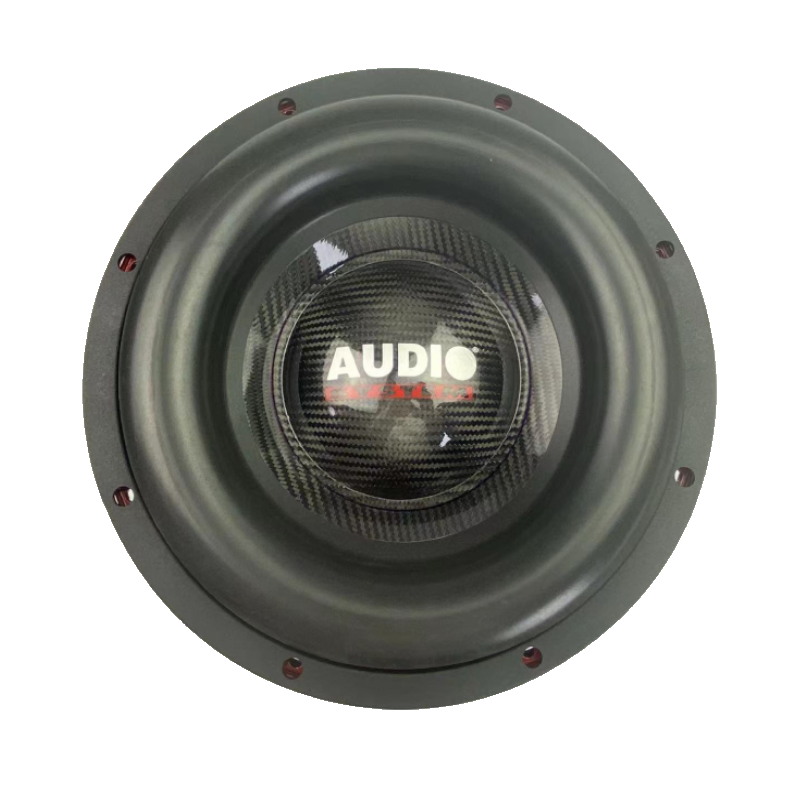

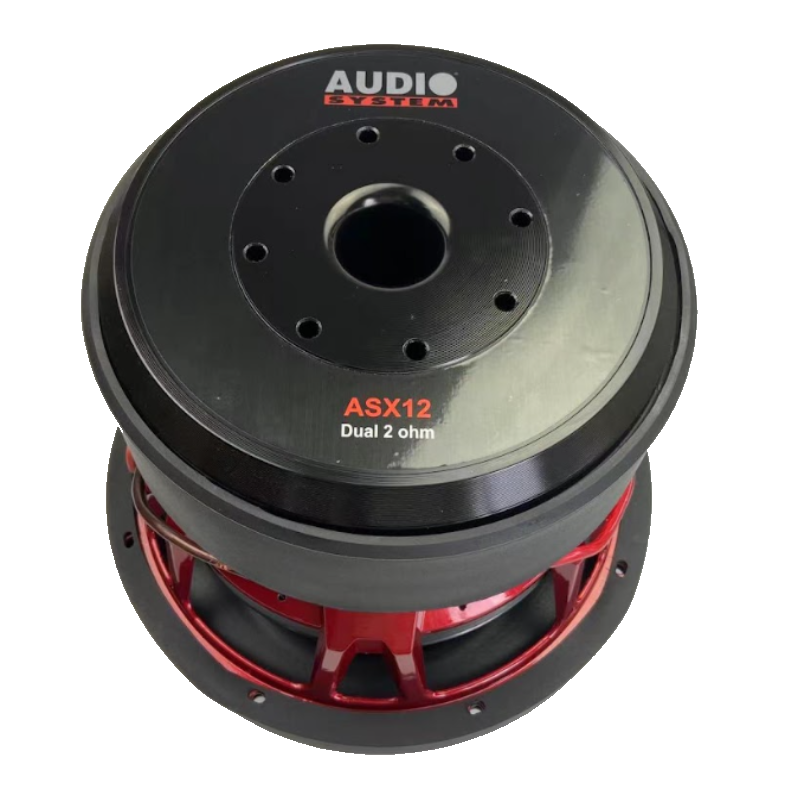

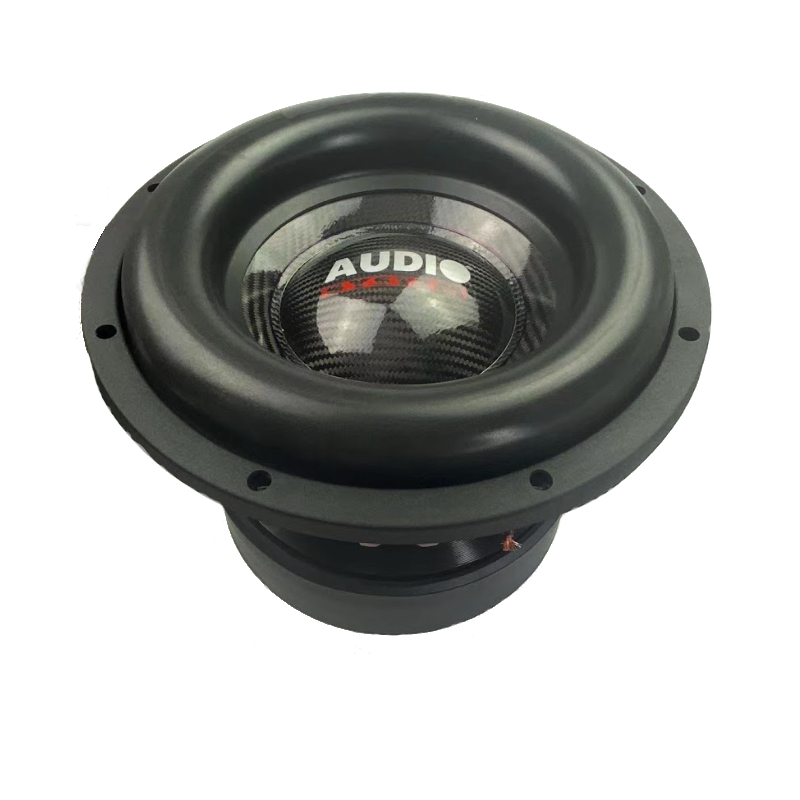

ASX 12
AUDIOSYSTEM ITALY ASX12
HEAVY DUTY subwoofer voor het zuiverste en luidste sublaag!
- 3500 Watt R.M.S. power handling (bij profesioneel gebruik +5000-9000 Watt R.M.S.).
- Full carbon cone and dustcap
- Diecast aluminium red basket
- High roll surround
- 4’’/100mm heavy duty voice coils
- Direct speaker leads
T/S Parameters ASX12
- Impedance 2x2 Ohm
- Voice coil winding height 65mm
- Linear excursion Xmax one-way 21mm
- Mechanical excursion Xmech one-way 30mm
- Cone area,Sd 471 cm²
- Moving mass Mms 371gram
- DC restistance Re 2x2 Ohm
- Resonance frequency Fs 33Hz
- Mechanical Q-factor Qms 3,44
- Electrical Q-factor Qes 0,35
- Total Q-factor Qts 0,32
- Equivalent Air Volume VAS 19,5 L
- VC Inductance Le 2,8 mH
- Flux Density B/L 29,8 N/A
- Efficiency 1W/1m SPL dB 85 dB
- Gewicht 28,5kg
- Inbouwdiepte 21,6cm
- Externe diameter 32,4cm
- Inbouwdiameter 28,6cm

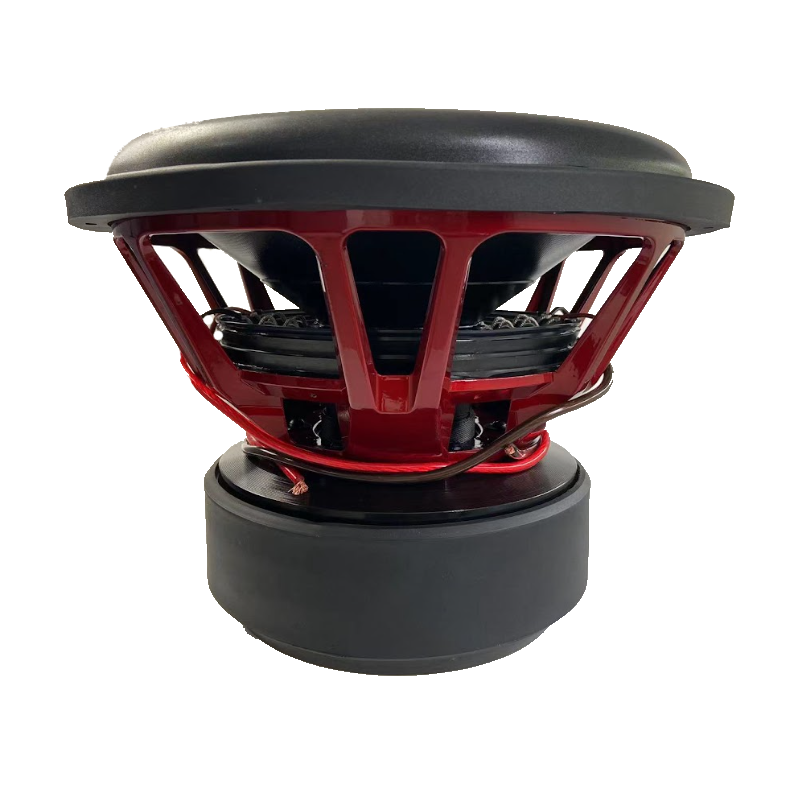

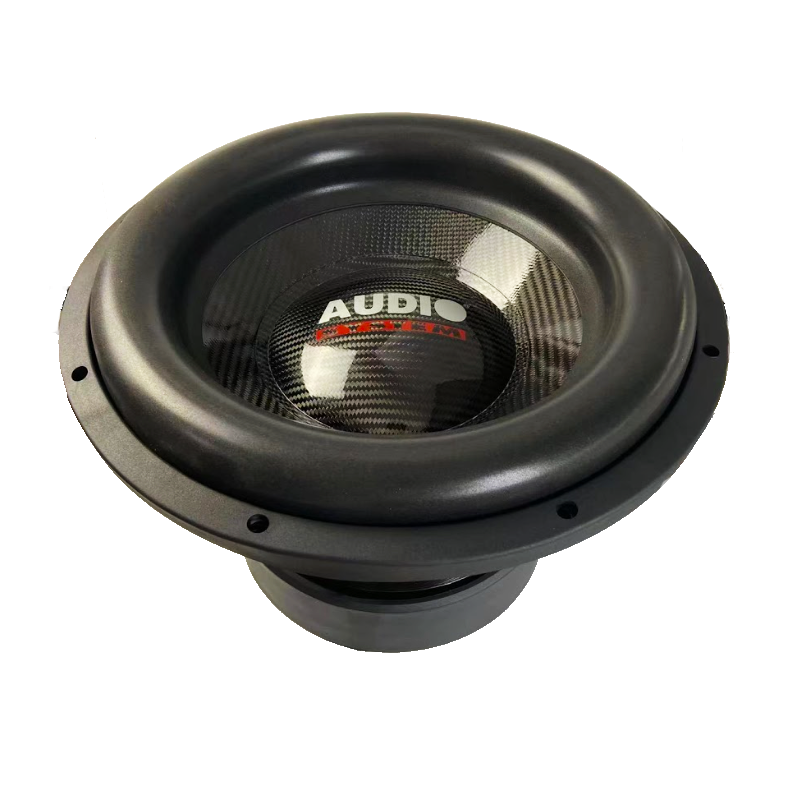

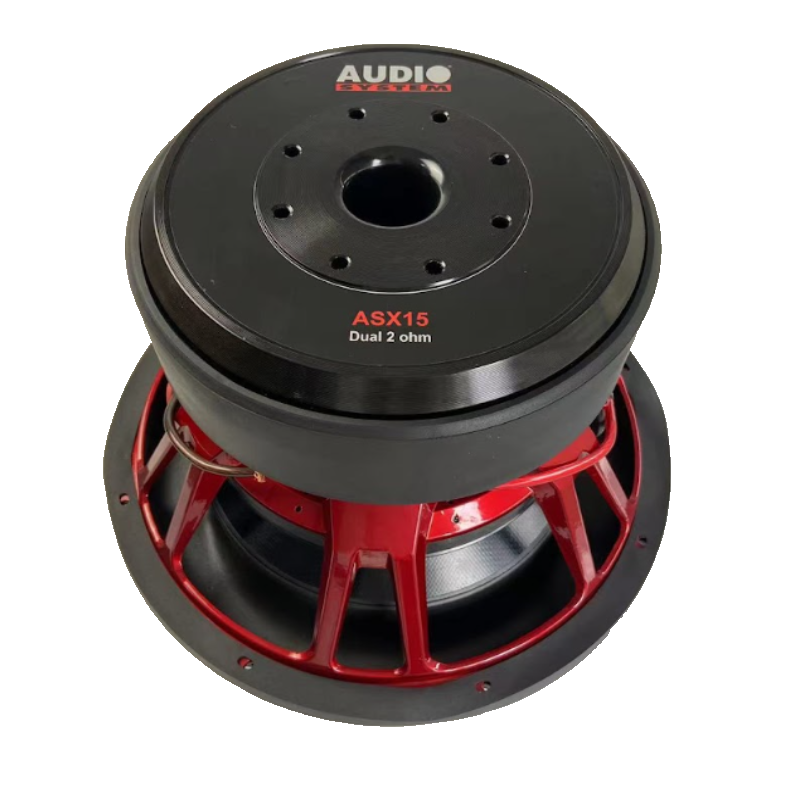

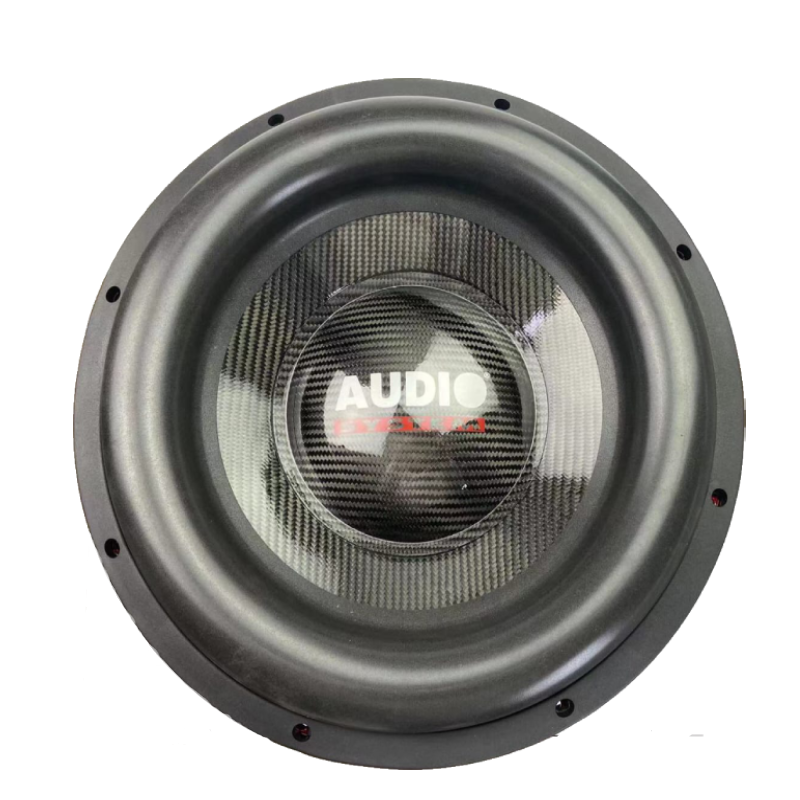

ASX 15
AUDIOSYSTEM ITALY ASX15
HEAVY DUTY subwoofer voor het zuiverste en luidste sublaag!
- 3500 Watt R.M.S. power handling (bij profesioneel gebruik +5000-9000 Watt R.M.S.).
- Full carbon cone and dustcap
- Diecast aluminium red basket
- High roll surround
- 4’’/100mm heavy duty voice coils
- Direct speaker leads
T/S Parameters ASX15
- Impedance 2x2 Ohm
- Voice coil winding height 65mm
- Linear excursion Xmax one-way 21mm
- Mechanical excursion Xmech one-way 30mm
- Cone area,Sd 779 cm²
- Moving mass Mms 532gram
- DC restistance Re 2x2 Ohm
- Resonance frequency Fs 30Hz
- Mechanical Q-factor Qms 3,83
- Electrical Q-factor Qes 0,45
- Total Q-factor Qts 0,4
- Equivalent Air Volume VAS 47 L
- VC Inductance Le 2,15 mH
- Flux Density B/L 29,8 N/A
- Efficiency 1W/1m SPL dB 86 dB
- Gewicht 29,0kg
- Inbouwdiepte 24,4cm
- Externe diameter 39,4cm
- Inbouwdiameter 35,3cm
ASY 10
AUDIOSYSTEM ITALY ASY 10''
- 10'' subwoofer
- 500Watt RMS
- 1000Watt max
- Dual 2ohm voice coils
- Vented pole design
- red coated frame
- push terminals
- stiched surround/cone joint
- rubber magnet protection
- inbouwdiepte 146mm
- Inbouwdiameter (cut-out); 228mm
Parameters
Fs 34.951
Revc (in series) 3.6
SD m 30.481
Mmd g 100
BL (T) (in series) 17.18
Qms 5.173
Qes 0.358
Qts 0.335
SPL 85.7
Vas (Ltr) 20.251
Cms 155.01
Krm 10.534
Erm 0.815
MMs (g) 134
MMd 130.7
Kxm 55.196
Exm 0.674

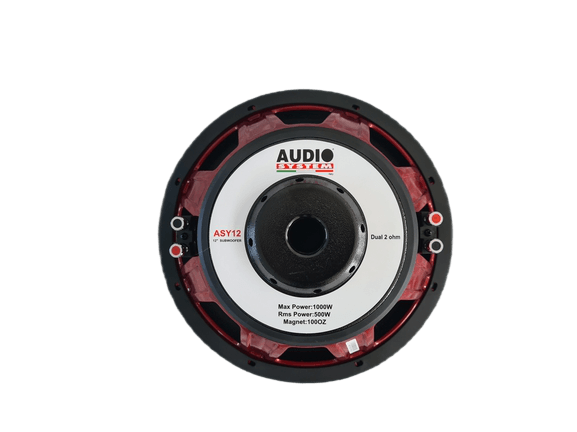

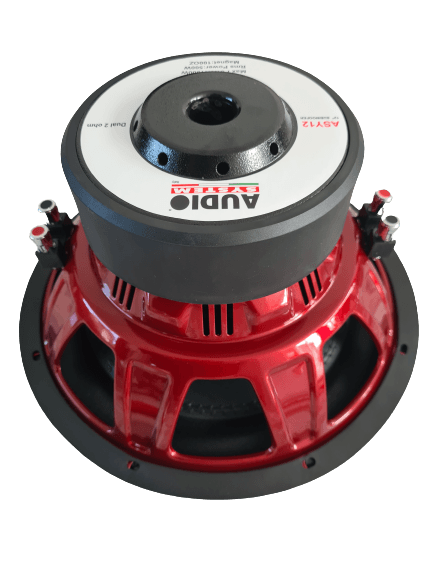

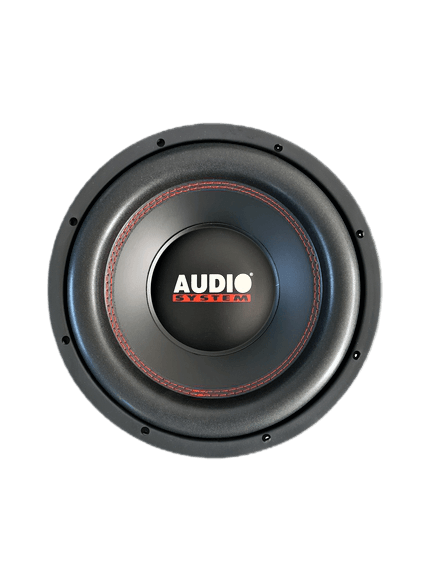

ASY 12
AUDIOSYSTEM ITALY ASY 12''
- 12'' subwoofer
- 500Watt RMS
- 1000Watt max
- Dual 2ohm voice coils
- Vented pole design
- red coated frame
- push terminals
- stiched surround/cone joint
- rubber magnet protection
- inbouwdiepte 161mm
- Inbouwdiameter (cut-out); 280mm
Parameters:
Fs 31.899
Revc ohm 3.6
SD m 47.144
Mmd g 200.000
BL (T) (in series) 15.49
Qms 4.578
Qes 0.556
Qts 0.496
SPL 85.8
Vas (Ltr) 42.446
Cms 134.49
Krm 9.228
Erm 0.822
MMs (g) 185
MMd 179.2
Kxm 39.750
Exm 0.710

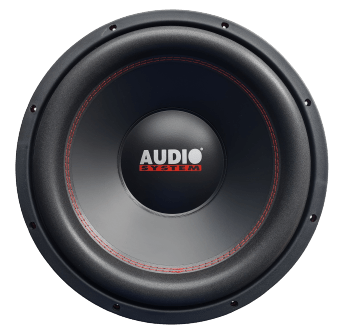

ASY 15
AUDIOSYSTEM ITALY ASY 15''
- 15'' subwoofer
- 500Watt RMS
- 1000Watt max
- Dual 2ohm voice coils
- Vented pole design
- red coated frame
- push terminals
- stiched surround/cone joint
- rubber magnet protection
- inbouwdiepte 181mm
- Inbouwdiameter (cut-out); 356mm
Parameters:
Fs 29.107
Revc ohm 3.6
SD m 78.427
Mmd g 250
BL (T) (in series) 17.02
Qms 7.348
Qes 0.676
Qts 0.619
SPL 86.9
Vas (Ltr) 87.88
Cms 100.62
Krm 9.510
Erm 0.819
MMs (g) 297
MMd 284.5
Kxm 44.830
Exm 0.696

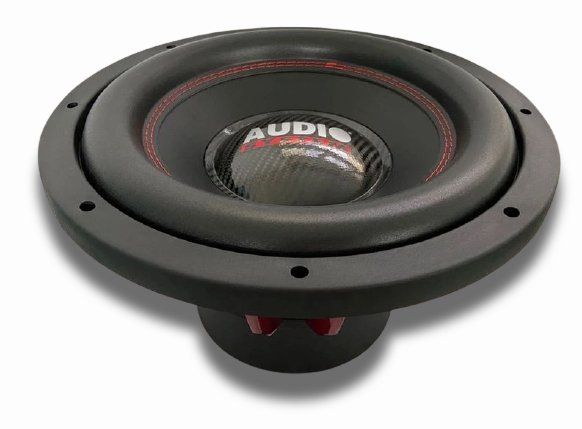

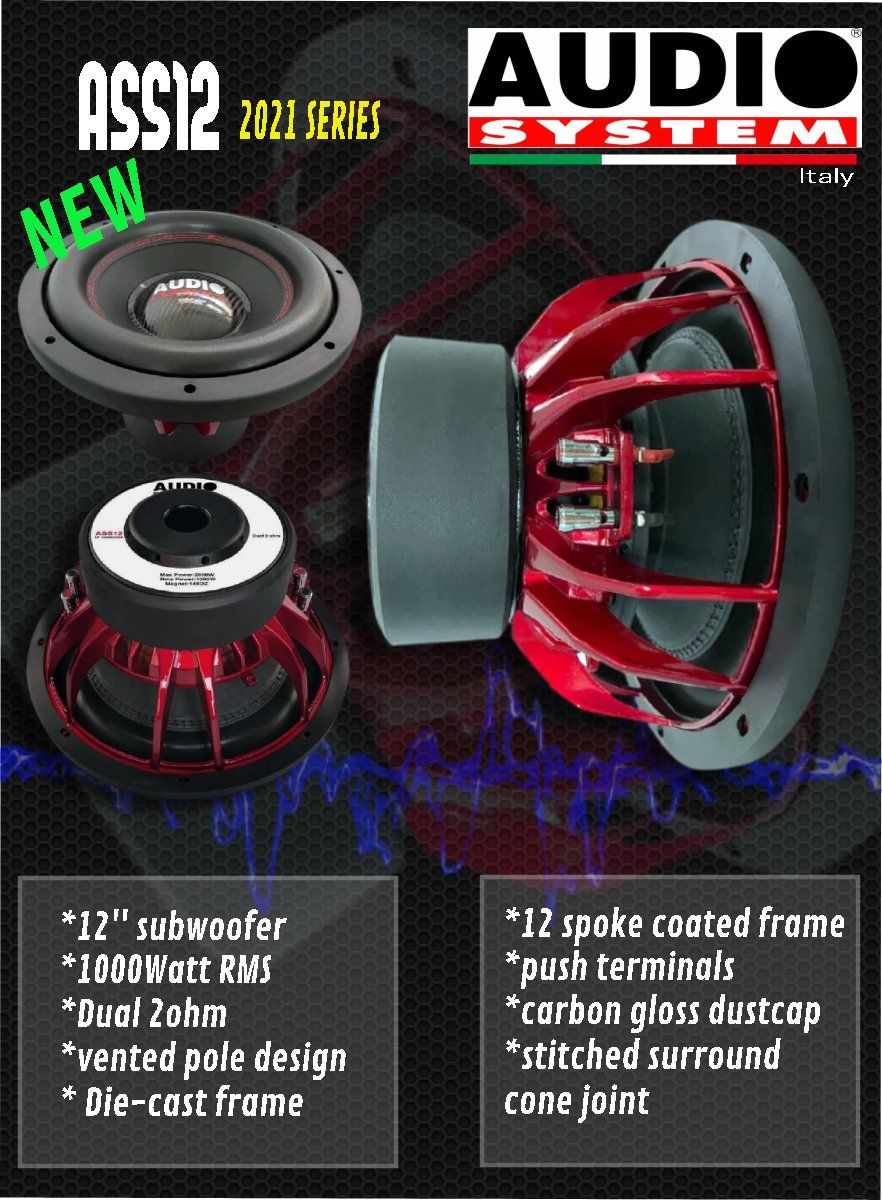

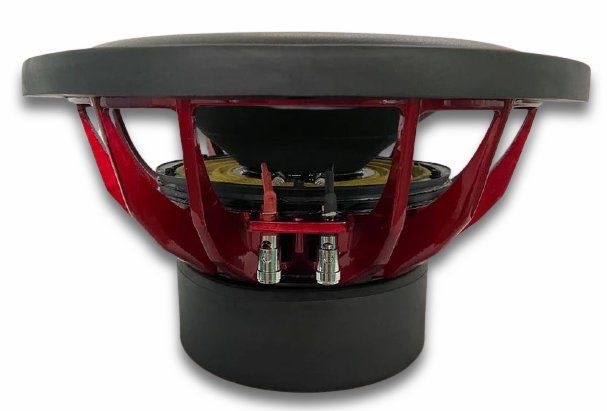

ASS 12
AUDIOSYSTEM ITALY ASS 12''
- 12'' subwoofer
- 1000Watt RMS
- 2000Watt max
- Dual 2ohm voice coils
- Vented pole design
- Die-cast frame
- 12 spoke rood coated frame
- push terminals
- carbon gloss dustcap
- stitched surround/cone joint
- Woven-in tinsel leads
Geschikt voor gesloten behuizing van 30-40 Liter
Geschikt voor gepoorte behuizing van 45-65Liter

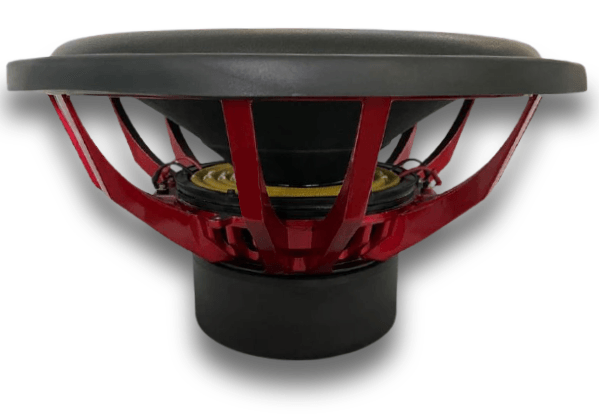

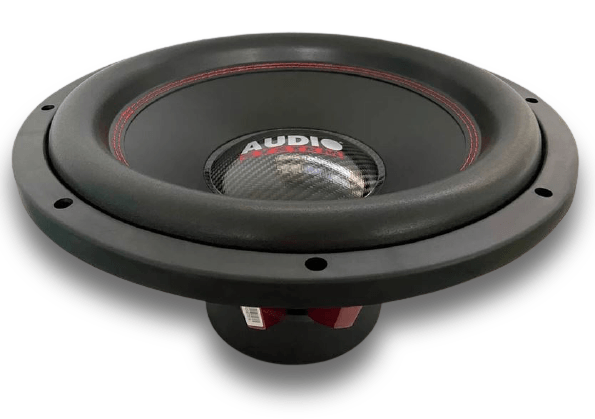

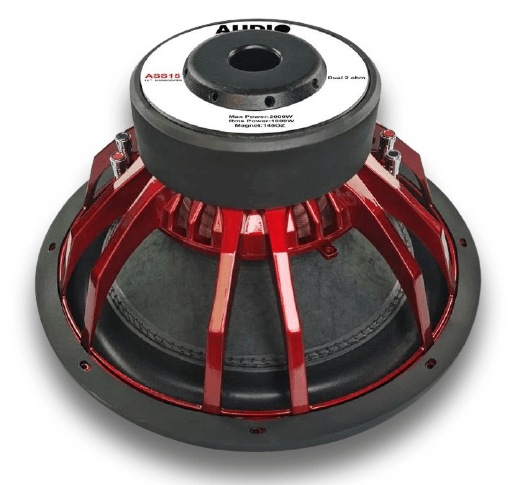

ASS 15
AUDIOSYSTEM ITALY ASS 15''
- 15'' subwoofer
- 1000Watt RMS
- 2000Watt max
- Dual 2ohm voice coils
- Vented pole design
- Die-cast frame
- 12 spoke rood coated frame
- push terminals
- carbon gloss dustcap
- stitched surround/cone joint
- Woven-in tinsel leads
Geschikt voor gesloten behuizing van 50-65 Liter
Geschikt voor gepoorte behuizing van 70-90Liter

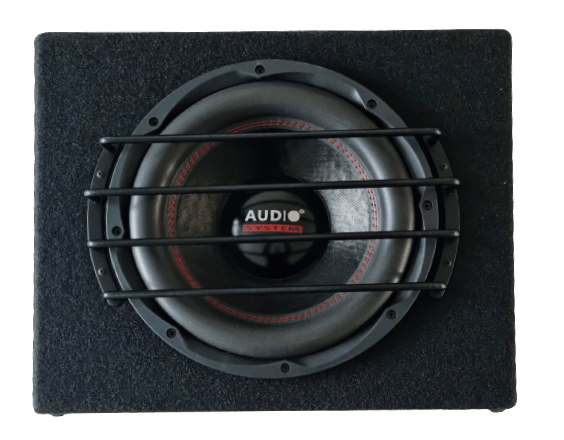

AUDIOSYSTEM ITALY AS12
- 12'' subwoofer in gesloten behuizing
- 400Watt RMS
- 4ohm voice coil
- push terminals achterzijde
- stitched surround/cone joint
- Bescherming voorzijde
- MDF behuizing
- Hoogte 380mm
- Breedte 460mm
- Diepte onder 260mm
- Diepte boven 190mm
