Master Stroke
De Master Stroke versterkers zijn het resultaat van jaren van onderzoek door audiofielen, met grenzeloze passie. Met de ontwikkeling van de Master Stroke heeft STEG nieuwe standaarden gedefinieerd: deze versterkers demonstreren ongekende kwaliteiten op het gebied van schoonheid van geluid, kracht en weergave zoals de originele track daadwerkelijk is opgenomen.
Geen enkel compromis, elk constructiedetail is uitgevoerd tot in de perfectie om zo voor een ongekende ervaring te zorgen. Master Stroke series behoort tot de top-range versterkers in de wereld!

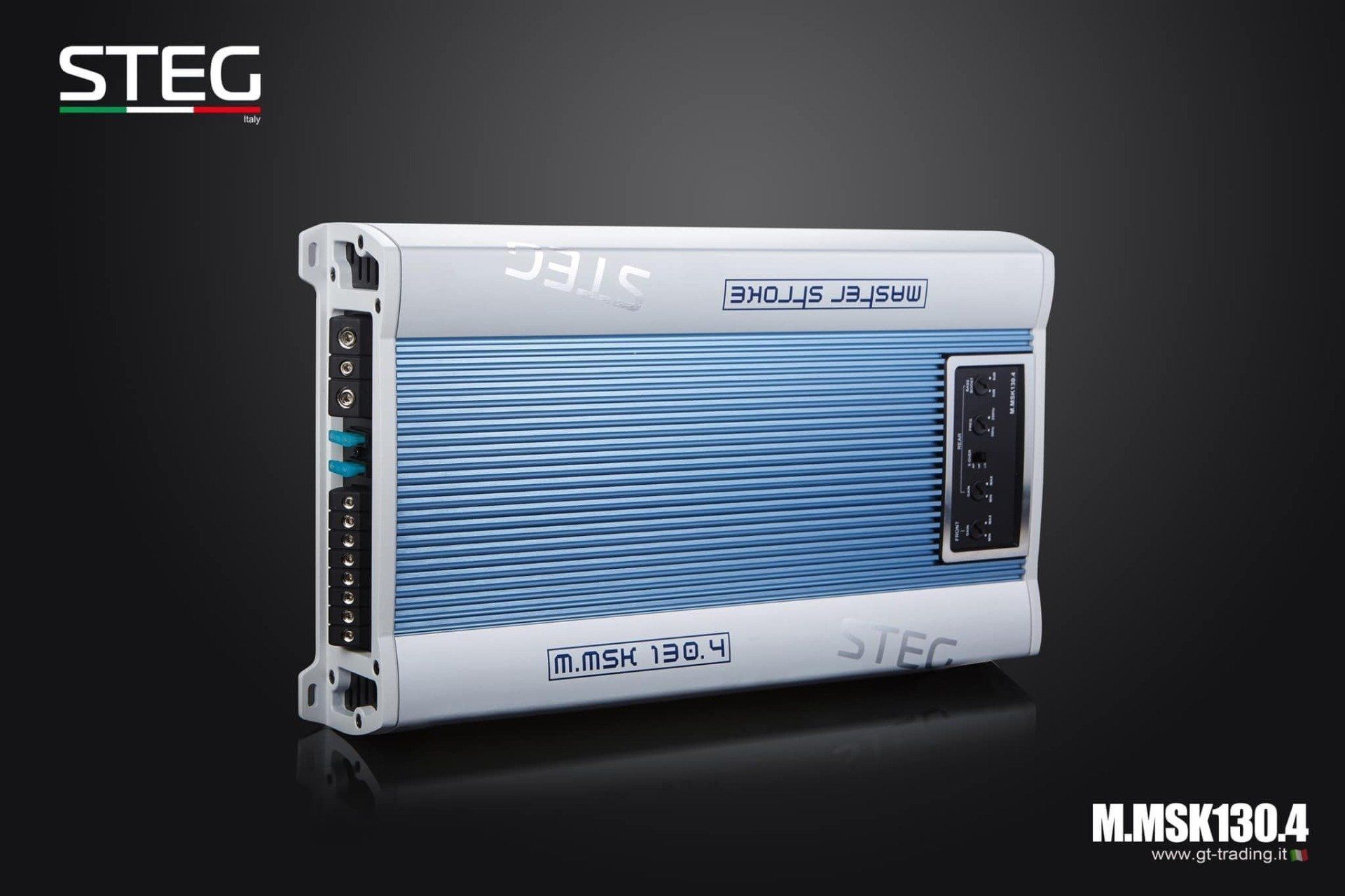

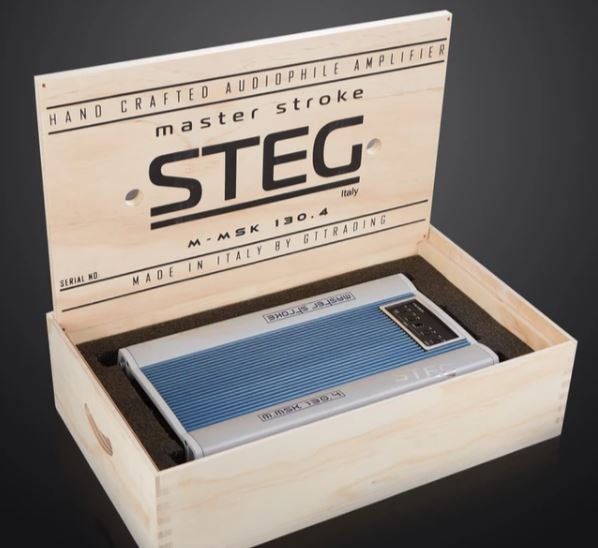

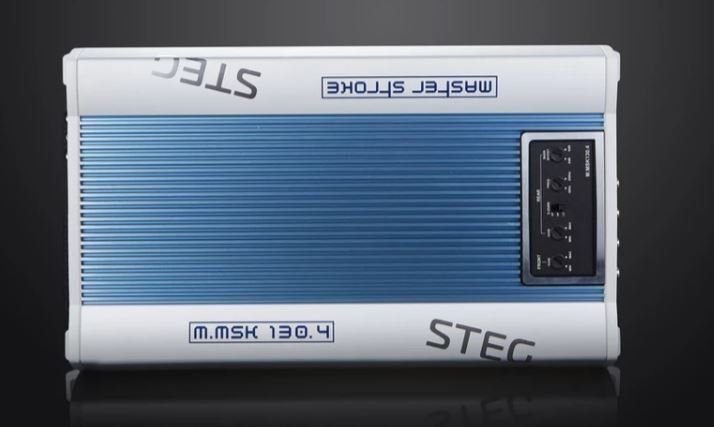

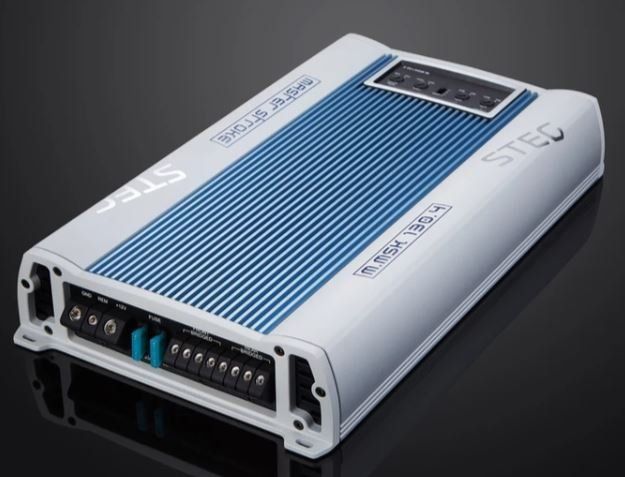

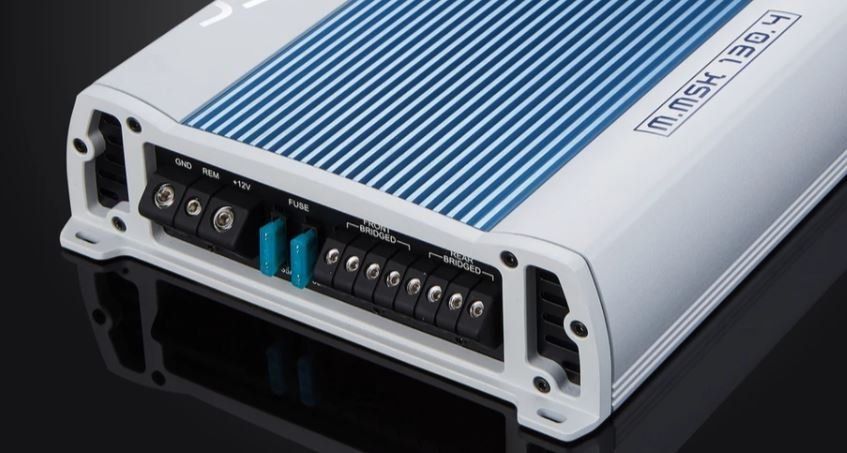

STEG M.MSK 130.4

New and improved amplifier from the STEG Master Stroke workshop (M.MSK 130.4), which deserves your attention. Thanks to the improved circuit, lower distortion, greater efficiency and better sound quality have been achieved. The amplifier is also suitable for competitive use, where even the smallest details in the recordings matter.

M.MSK 130.4
TECHNICAL DETAILS

POWER SUPPLY: 8-16Vcc
STANDBY CURRENT: <1.2A
INPUT SENSIVITY: 0.2-5V
INPUT IMPEDANCE: 48KΩ
OUTPUT POWER 4Ω @ 14.4V: 130Wx4
OUTPUT POWER 2Ω @ 14.4V: 200Wx4
OUTPUT POWER MONO 4Ω @ 14.4V: 400Wx2
FREQUENCY RESPONSE:±dB 25Hz--25KHz
SIGNAL/NOISE RATIO:<100dB
DIMENSIONS (WXHXD):380x59x216mm
WEIGHT: 5Kg

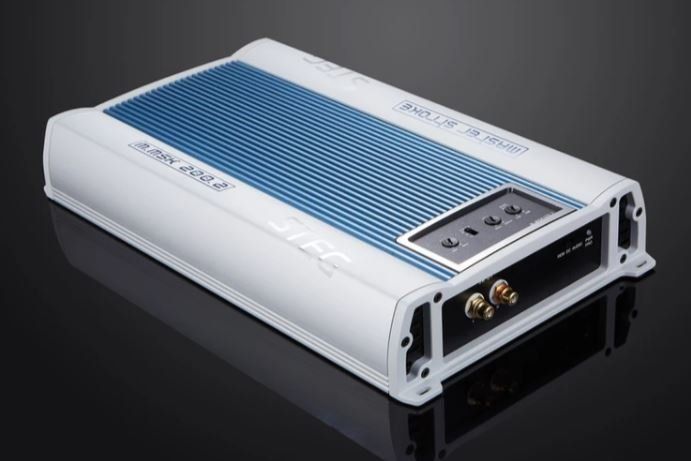

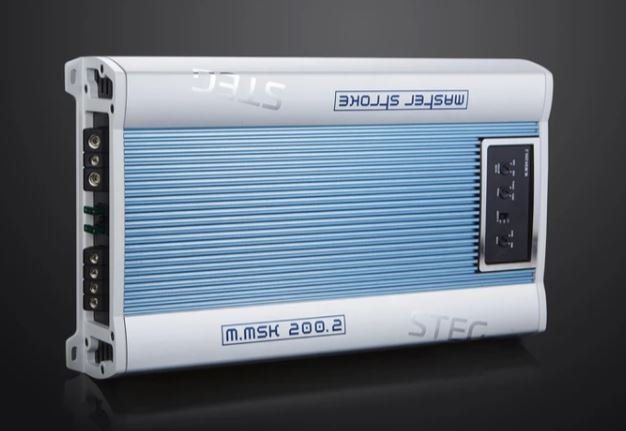

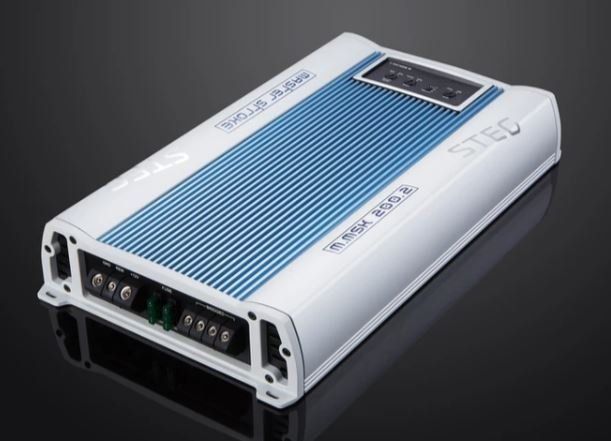

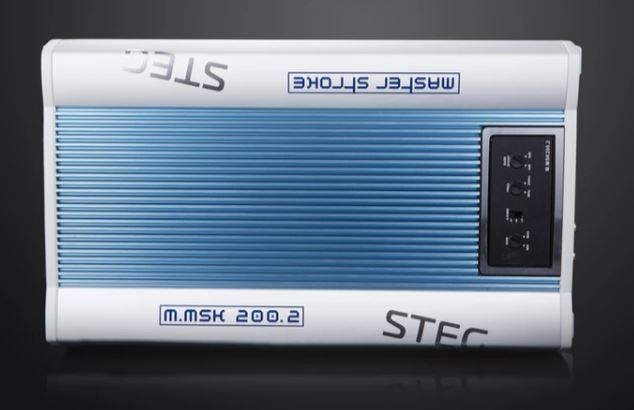

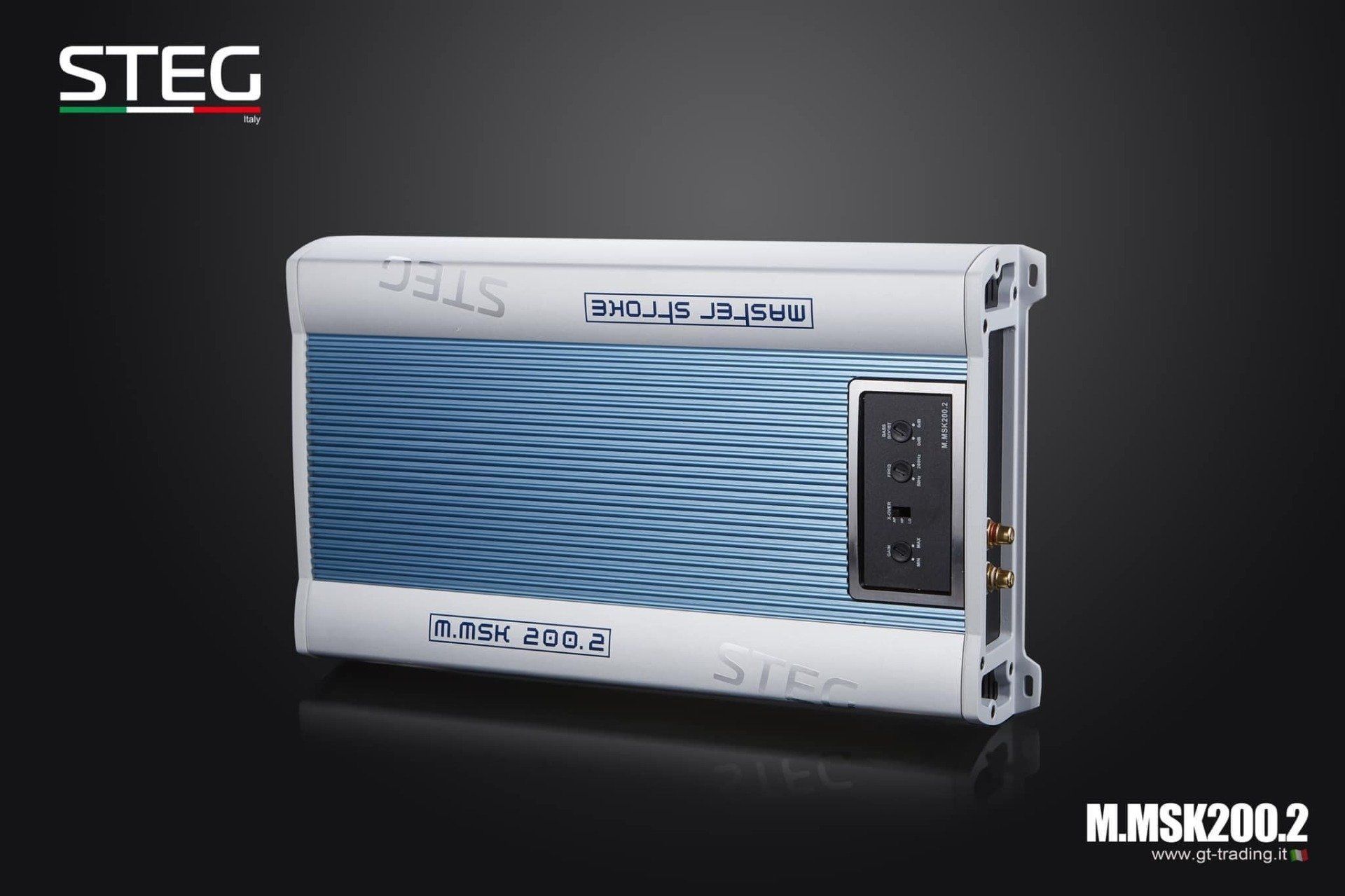

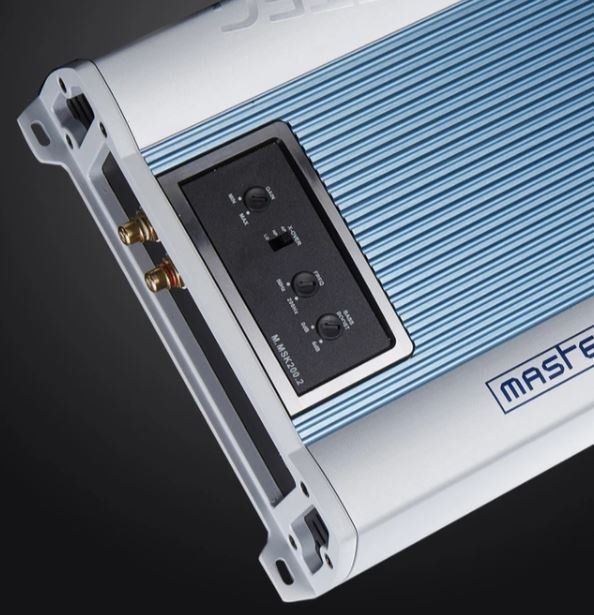

STEG M.MSK 200.2

New and improved amplifier from the STEG Master Stroke workshop (M.MSK 200.2), which deserves your attention. Thanks to the improved circuit, lower distortion, greater efficiency and better sound quality have been achieved. The amplifier is also suitable for competitive use, where even the smallest details in the recordings matter.

M.MSK 200.2
TECHNICAL DETAILS

POWER SUPPLY: 8-16Vcc
STANDBY CURRENT: <1.2A
INPUT SENSIVITY: 0.2-5V
INPUT IMPEDANCE: 48KΩ
OUTPUT POWER 4Ω @ 14.4V: 200Wx2
OUTPUT POWER 2Ω @ 14.4V: 350Wx2
OUTPUT POWER MONO 4Ω @ 14.4V: 700Wx1
FREQUENCY RESPONSE:±dB 25Hz--20KHz
SIGNAL/NOISE RATIO:<100dB
DIMENSIONS (WXHXD):380x59x216mm
WEIGHT: 5Kg

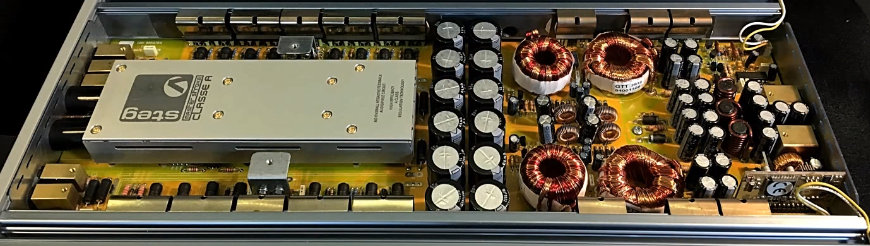

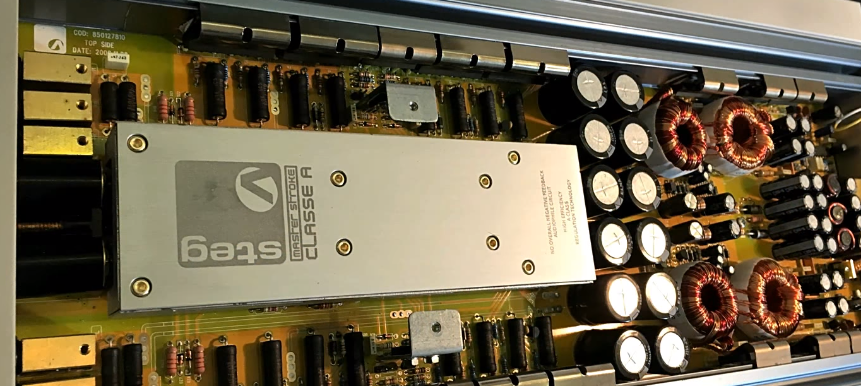

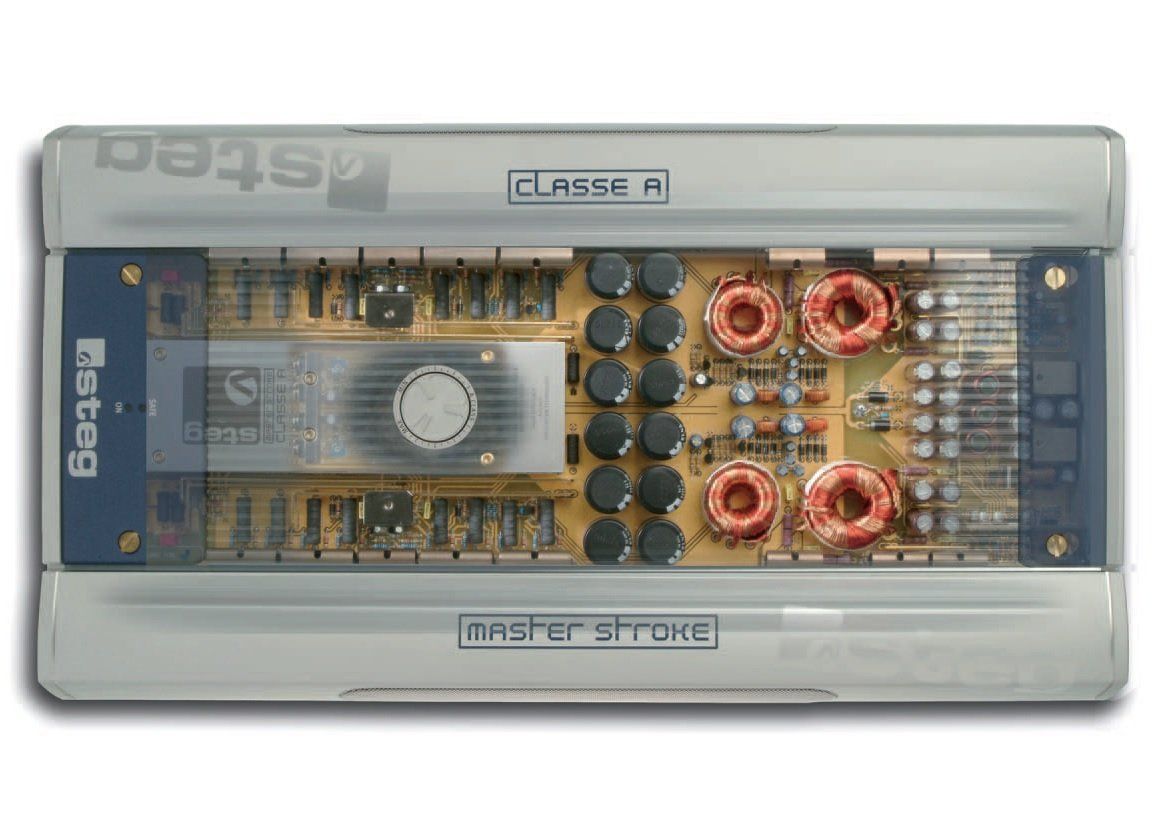

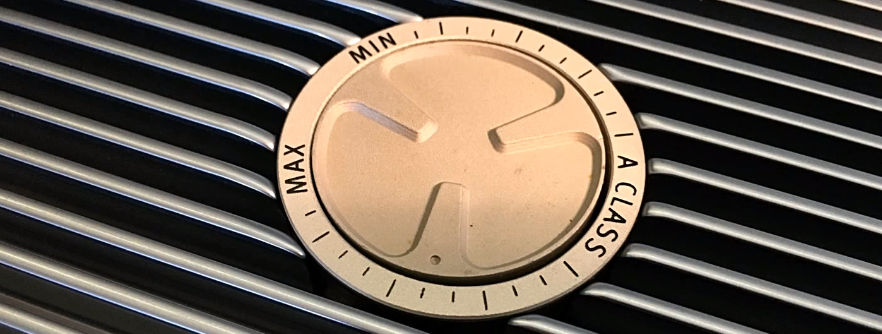

CLASSE A

Masterstroke "Class A" is the most advanced technology we can now imagine in the field of high-end amplifier for cars. Embodies the goals of STEG research in the combination of innovative technologies, operating effectively and in absolute balance of the whole. The "CLASS" employs circuit solutions as the absence of
Negative feedback and class A operation.

Built state of the art, the "CLASS" is expressed Sound of car audio. Tonal consistency, sweetness and three-dimensionality of the sound stage, give an enchanting listening involvement, demonstrating the complete and unaltered reproduction of the original musical message.


NO NEGATIVE FEEDBACK; The amplification stages are extremely articulated electronic circuits, the interaction between the components coupled with the physical / technological limits of the same and signal complexity are among the many variables that combine to produce unwanted effects on system operation.
The design of an amplifier, already in itself difficult, is complicated when dealing with the type of audio signals: the musical information in the input must stay unaltered throughout the process, to complete recur every micro information on the amplified output; in this case, one can speak of "High Fidelity".
Realize this type of circuitry requires experience and deep knowledge of technology, components and sound. Know-how to draw on in creating a balance between the many factors at play. There is a method commonly used that simplifies the design of an amplifier is the use of Negative Feedback in order to fill the imperfections generated by the circuit during the amplification process.

POWER:
Power 4 ohms stereoWatt RMS - 11 to 14.4 Volt 100 x 2
Power 2 ohms stereoWatt RMS - 11 to 14.4 Volt 200 x 2
Power in Watts RMS CLASS A - 11 to 14.4 Volt 50 x 2

SENSITIVITY 'ENTRANCE:
Volts RMS 0.4 V - 5.5 V

DIMENSIONS:
466 x 60 x 255 mm

WEIGHT:
7 Kg

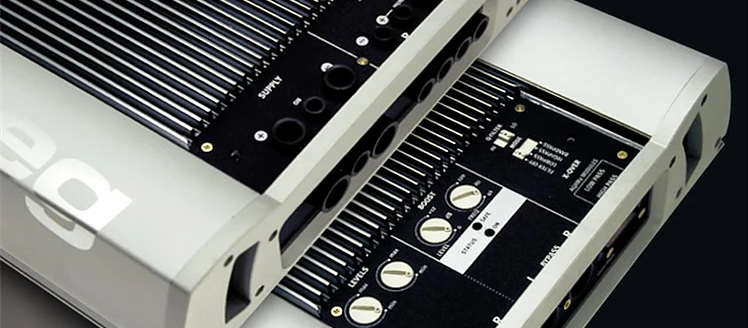

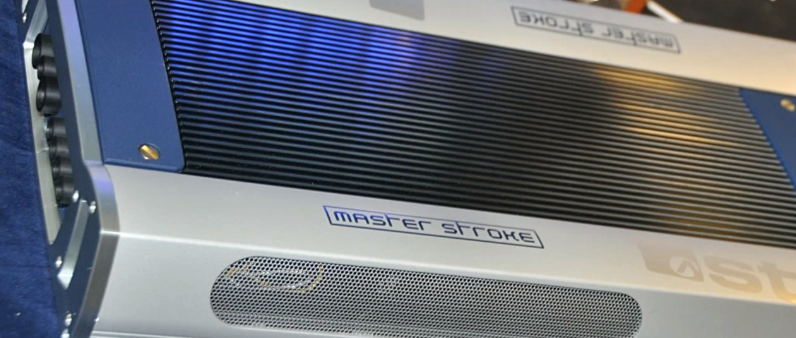

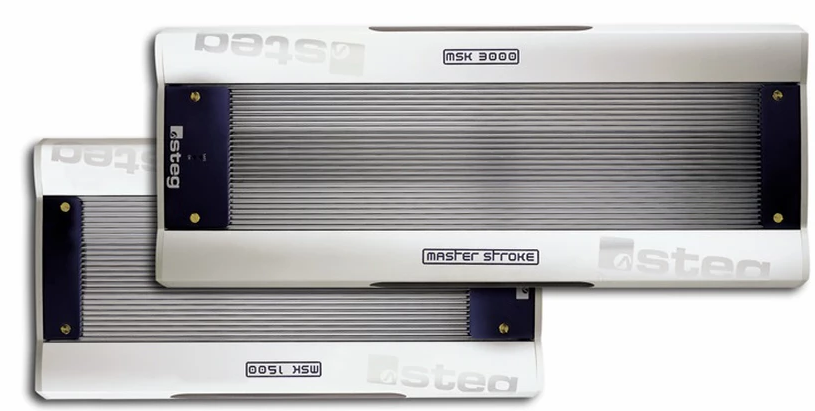

MSK1500

  • Stereo amplifier HIGH-END 200 + 200 Watts RMS into 4 ohms, 1400 watts RMS into 1 ohm.

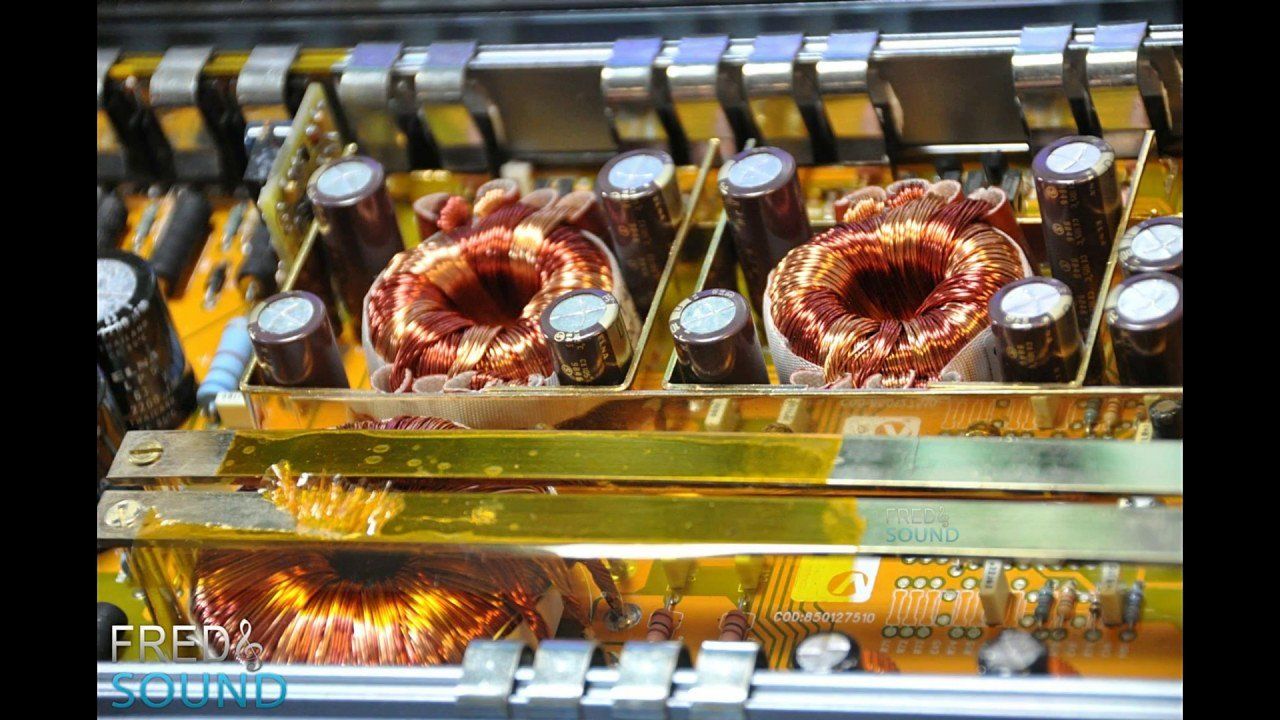

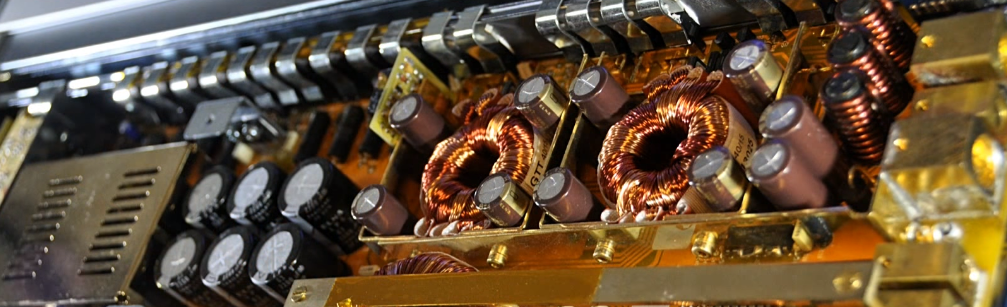

  • conversion stage dc-dc differential (positive and negative branches separated) to energy recovery, mosfet switching for a total of 640 A, stabilized in P.R.H.E.S.S. technology (Primary Regulated High efficence Supply System) up to 11 Volt battery power.
  • Stage amplifier configuration to "triple darlinghton" high yield sound developed on transistors 40 MHz Sanken, equipped with a complex of automatic biasing circuit. of the symmetric signal processor all along its path realized in BJT and FET transistors very low feedback.
  • Audiophile preamp that uses low-noise operational amplifiers as well as precision resistors and capacitors.

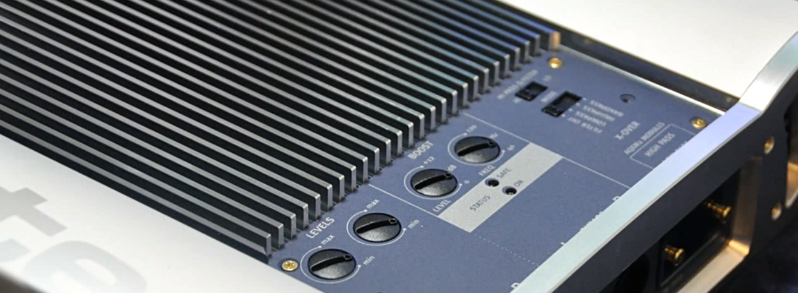

  • Electronic Crossover excludable that uses high-precision AQXM2 frequency modules (settable in high-pass, low-pass and band-pass) with a slope of 12 dB / oct and Q @ configurable to 0.7 or 1 Tchebitchef Butterworth. Paragraphic continuously variable equalizer (0 / + 12dB - 40 / 120Hz).
  • Levels of input sensitivity separated.
  • Bypass output.
  • Forced ventilation system in Termo-controlled load speed.
  • GR.I.P.S. system immunization by the integrated electromagnetic interference.
  • Operation Stereo / Mono simultaneous "Trimode".
  • automatic reset protection.
  • Fixing system TRIMFEET sliding feet.

POWER:
Power 4 ohms stereoWatt RMS - 11 to 14.4 Volt 200 x 2
Power 2 ohms stereoWatt RMS - 11 to 14.4 Volt 400 x 2
Power 4 ohms monoWatt RMS - 11 to 14.4 Volt 800 x 1
Power 2 ohms monoWatt RMS - 11 to 14.4 volts 1500 x 1

SENSITIVITY 'ENTRANCE:
Volts RMS 0.5 V - 5 V

DIMENSIONS:
420 x 60 x 255 mm

WEIGHT:
7.4 Kg

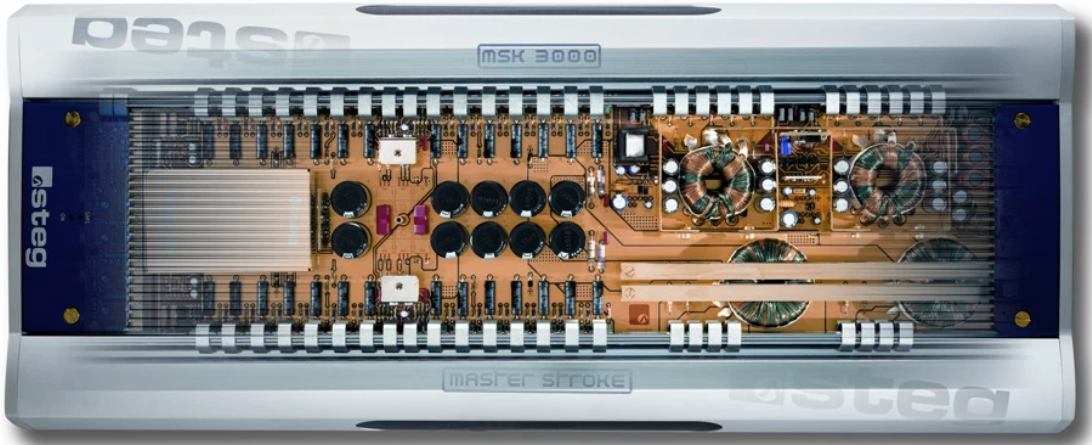

MSK3000

  • HIGH-END stereo amplifier high-current 400 + 400 Watts RMS into 4 ohms, 3000 watts RMS into 1 ohm.
  • conversion stage dc-dc differential (positive and negative branches separated) to energy recovery, mosfet switching for a total of 960 A, stabilized in P.R.H.E.S.S. technology (Primary Regulated High efficence Supply System) up to 11 Volt battery power.
  • Stage amplifier configuration to "triple darlinghton" high yield sound developed on transistors 40 MHz Sanken, equipped with a complex of automatic biasing circuit.
  • of the symmetric signal processor all along its path realized in BJT and FET transistors very low feedback.
  • Audiophile preamp that uses low-noise operational amplifiers as well as precision resistors and capacitors.
  • Electronic Crossover excludable that uses high-precision AQXM2 frequency modules (settable in high-pass, low-pass and band-pass) with a slope of 12 dB / oct and Q @ configurable to 0.7 or 1 Tchebitchef Butterworth. Paragraphic continuously variable equalizer (0 / + 12dB - 40 / 120Hz).
  • Levels of input sensitivity separated.
  • Bypass output.
  • Forced ventilation system in Termo-controlled load speed.
  • GR.I.P.S. system immunization by the integrated electromagnetic interference.
  • Operation Stereo / Mono simultaneous "Trimode".
  • automatic reset protection.
  • Fixing system TRIMFEET sliding feet.

POWER:
Power 4 ohms stereoWatt RMS - 11 to 14.4 Volt 400 x 2
Power 2 ohms stereoWatt RMS - 11 to 14.4 Volt 800 x 2
Power 4 ohms monoWatt RMS - 11 to 14.4 volts 1600 x 1
Power 2 ohms monoWatt RMS - 11 to 14.4 volts 3000 x 1

SENSITIVITY 'ENTRANCE:
Volts RMS 0.5 V - 5 V

DIMENSIONS:
466 x 60 x 255 mm

WEIGHT:
9.5 Kg
