STEG SDSP series
Six exlectrical engineers, designed to meet the most demanding audiophiles and drive systems SPL competition. innovative amplifiers, capable of very high currents, insensitive to the lower load impedances, up to 2ohm bridged mono.
Elegant and sophisticated design, all aluminum chassis with integrated tunnels that the active cooling system. Built with quality materials, selected to enhance the most sophisticated installations and ensure the highest level of reliability. Extremely versatile, incorporating a wide range of functions associated with each other and able to configure complex audio systems, without the aid of external devices. Stabilized from 11 Volt, Watt many well-sounding, always. Support SERIALPOWER configuration: the stereo models are connected with each other to add the power of two units as it were a single amplifier. Incorporate a microprocessor that manages the complex system of protection and that, through the STEGLINK door, can communicate with the PC. Kcompetition is the new way to amplify STEG, destined once again to move forward any reference.

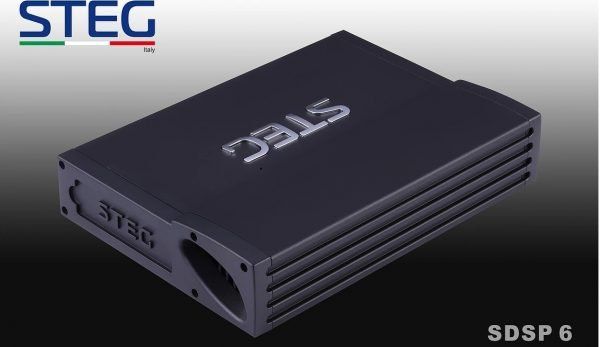

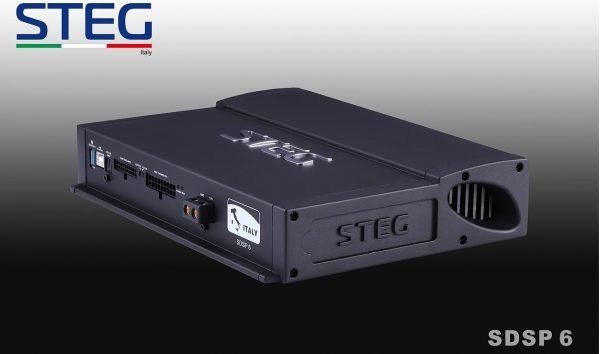

STEG SDSP-6
6-channel Class D amplifier with integrated DSP +2 digitally processed line outputs so
that another amplifier can be driven in the same system by creating a very powerful and
multi-channel system in a small space. Output power (14V4):
100W x 6 @ 4 Ohm
180W x 6 @ 2 ohm

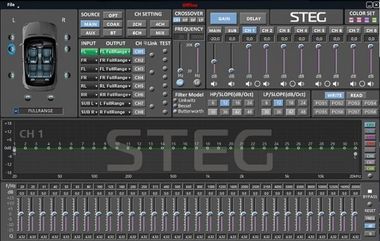

The powerful software allows you to set all the functions of the DSP on a single page with simplicity and intuitiveness, so that it can be used even by the less experienced. Possibility of use in offline mode, so you can create a configuration and insert it in the DSP at any time.
The new STEG Upgrade Amplifiers cover years and years of development, hours and hours of listening tests to select the best materials and enclose them in a single product. The new ST DSP-6 and ST DSP-8 is the ultimate expression in sound reproduction and uncompromising design, just remove the original and replace it with this new STEG amplifier to immediately appreciate a radical change in sound quality, without moving any hole or cut some wires from the original. We have not neglected any detail to bring in the car the exact reproduction of a Live concert. Another product that is preparing to become a reference for the world market.
DSP6 Technical Data
Output power RMS:
@ 4 0hms 100 Watts per channel (._< 1% THD+N)
@ 2 Ohms180 Watts per channel (._< 1% THD+N)
- Inputs 2 x RCA / AUX in 6 Highlevel speaker input 1 x Optical SPDIF (12 – 96 kHz) 1 x Remote In
- Input sensitivity RCA I Cinch 400mv 1 x COXA in Highlevel 5 – 10 Volts or 10 – 20 Volts
- Outputs 6 x Speaker 2 x RCA I Cinch 1 x Remote Out
- Output voltage RCA I Cinch >5 Volts RMS
- Frequency response20 Hz – 22,000 Hz
- DSP resolution 64 Bit
- DSP power 295 MHz (1.2 billion MAC operations/second)
- Sampling rate 48 kHz
- Signal converters AID: BurrBrown D/A: BurrBrown
- Signal-to-noise ratio digital input 105 dB (A-weighted)
- Signal-to-noise ratio analog input 100 dB (A-weighted)
- Distortion(THD) < 0.015 %
- Damping factor> 70
- Input impedance RCA 22 kOhms
- Input impedance highlevel 200 Ohms
- Operating voltage 9 – 15 Volts (max. 5 sec. down to 6 Volts)
- Additional features; USB Bluetooth, DRC controller
- Dimensions ( W x D x H) 281 x 21O x 57.5 mm

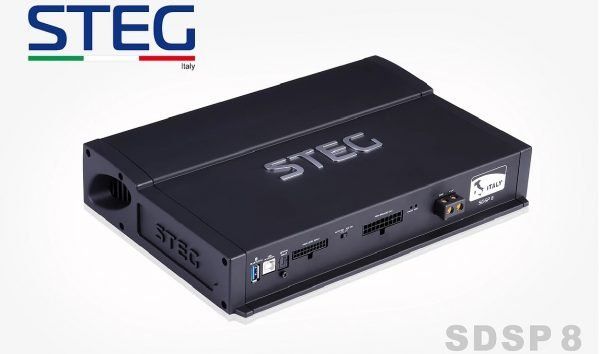

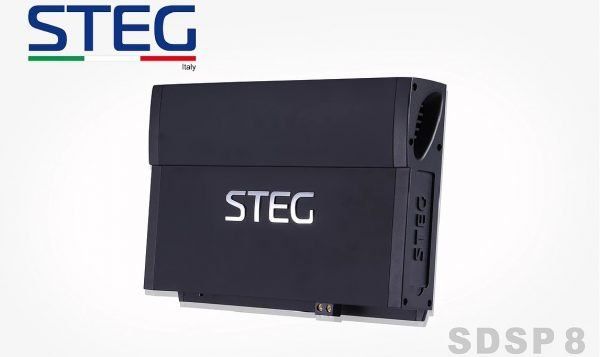

STEG SDSP-8
8-channel Class D amplifier with integrated DSP +2 digitally processed line outputs so
that another amplifier can be driven in the same system by creating a very powerful and
multi-channel system in a small space. Output power (14V4):
100W x 8 @ 4 Ohm
180W x 8 @ 2 ohm
The powerful software allows you to set all the functions of the DSP on a single page with simplicity and intuitiveness, so that it can be used even by the less experienced. Possibility of use in offline mode, so you can create a configuration and insert it in the DSP at any time.
The new STEG Upgrade Amplifiers cover years and years of development, hours and hours of listening tests to select the best materials and enclose them in a single product. The new ST DSP-6 and ST DSP-8 is the ultimate expression in sound reproduction and uncompromising design, just remove the original and replace it with this new STEG amplifier to immediately appreciate a radical change in sound quality, without moving any hole or cut some wires from the original. We have not neglected any detail to bring in the car the exact reproduction of a Live concert. Another product that is preparing to become a reference for the world market.
DSP6 Technical Data
Output power RMS:
@ 4 0hms 100 Watts per channel (._< 1% THD+N)
@ 2 Ohms 180 Watts per channel (._< 1% THD+N)
Inputs 2 x RCA / AUX in 6 Highlevel speaker input 1 x Optical SPDIF (12 – 96 kHz) 1 x Remote In
Input sensitivity RCA I Cinch 400mv 1 x COXA in Highlevel 5 – 10 Volts or 10 – 20 Volts
Outputs 8 x Speaker 2 x RCA I Cinch 1 x Remote Out
Output voltage RCA I Cinch >5 Volts RMS
Frequency response20 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
Signal converters AID: BurrBrown D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input100 dB (A-weighted)
Distortion(THD) < 0.015 %
Damping factor> 70
Input impedance RCA 22 kOhms
Input impedance highlevel 200 Ohms
Operating voltage 9 – 15 Volts (max. 5 sec. down to 6 Volts)
Additional features; USB Bluetooth, DRC controller
Dimensions ( W x D x H) 310 x 21O x 57.5 mm

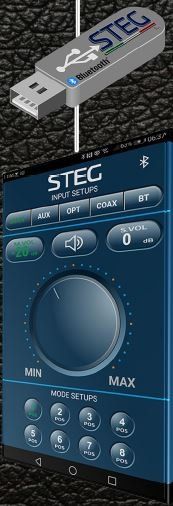

OPTIONEEL STEG CONNECTIVITY BLUETOOTH, FOR PLAY MUSIC AND SET THE DSP, FOR ANDROID AND IOS
EXTERNAL DISPLAY ON PHONE OR TABLET / CONTROLLER FOR PRESETS AND MAIN CONTROLS.
MANAGE:
– SUBWOOFER
– PRESETS
– MUTE
– VOLUME MASTER
EASY TO INSTALL
OPTIONEEL STEG CONNECTIVITY BLUETOOTH, FOR PLAY MUSIC AND SET THE DSP, FOR ANDROID AND IOS
EXTERNAL DISPLAY / CONTROLLER FOR PRESETS AND MAIN CONTROLS.
MANAGE:
– SUBWOOFER
– PRESETS
– MUTE
– VOLUME MASTER
EASY TO INSTALL
SIZE: 72LX35PX20H
