STEG ST SERIES
Audiophile Transistor output stage, dual differential input to eliminate any noise generated by the car radio, make that the new ST line can satisfy the most demanding audiophiles. innovative amplifiers, capable of very high currents. elegant and sophisticated design, all aluminum chassis. Built with quality materials, selected to enhance the most sophisticated installations and ensure the highest level of reliability. Extremely versatile, incorporating a wide range of functions associated with each other and able to configure complex audio systems, without the aid of external devices. Possibility of ignition with autosense, (arrival of the audio signal is switched on and goes out as soon goes away the audio signal), the input possibilities in High Level. ST series is the new way to amplify STEG, destined once again to move forward any reference, in these three models is enclosed 30 years of experience in the design and production of car amplifiers.

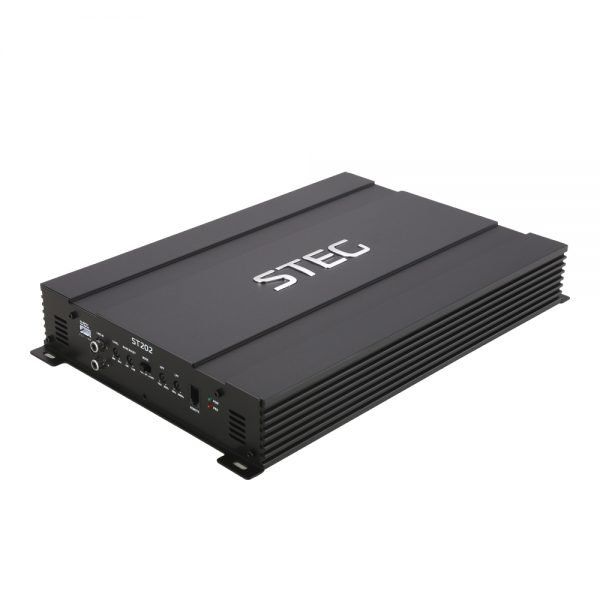

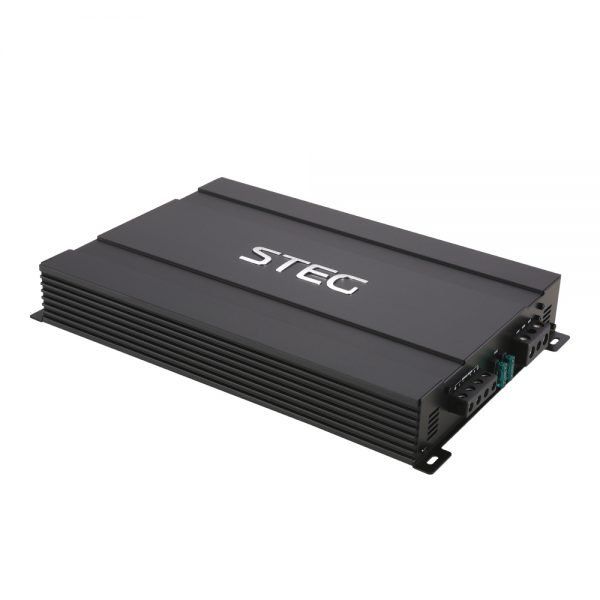

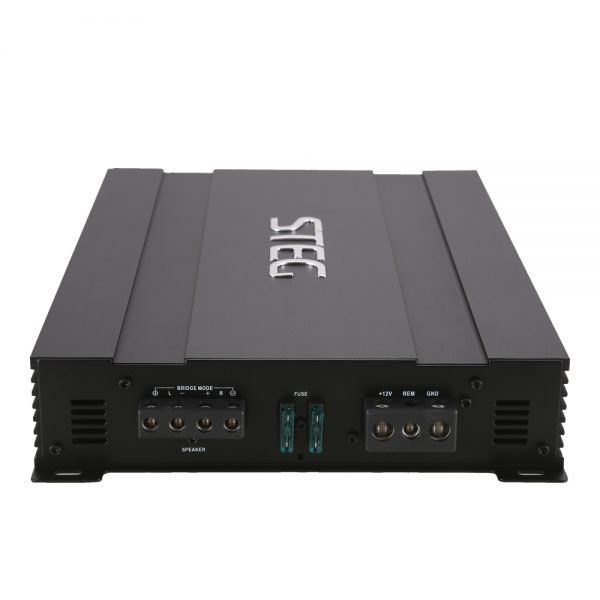

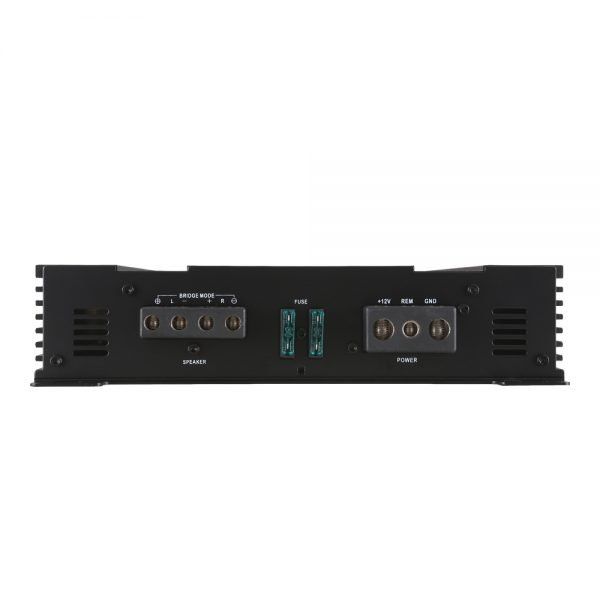

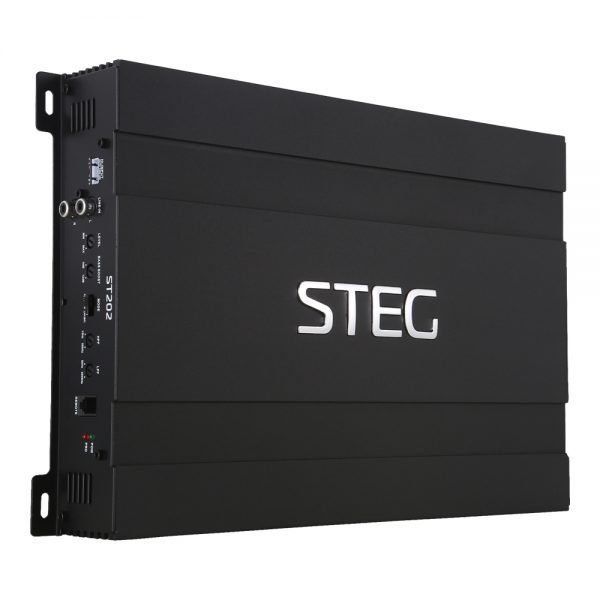

STEG ST202
POWER:
Power 4 ohms stereoWatt RMS – 14.4 Volt 125 x 2
Power 2 ohms stereoWatt RMS – 14.4 Volt 195 x 2
Power 4 ohms monoWatt RMS – 14.4 Volt 390 x 1
SENSITIVITY 'ENTRANCE:
V volts RMS 0.5 – 9 V
HIGH Pass 15Hz – 500Hz
LOW Pass 50Hz – 4000Hz
Band Pass 15 Hz – 4000 Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
360 x 52 x 230 mm
WEIGHT:
3.21 Kg

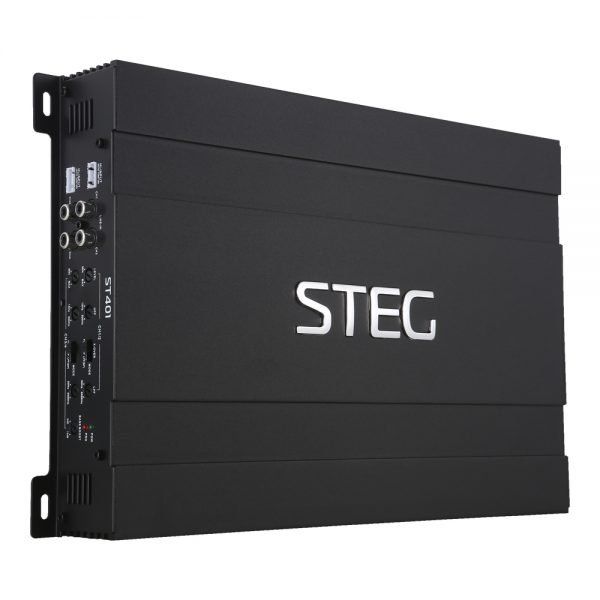

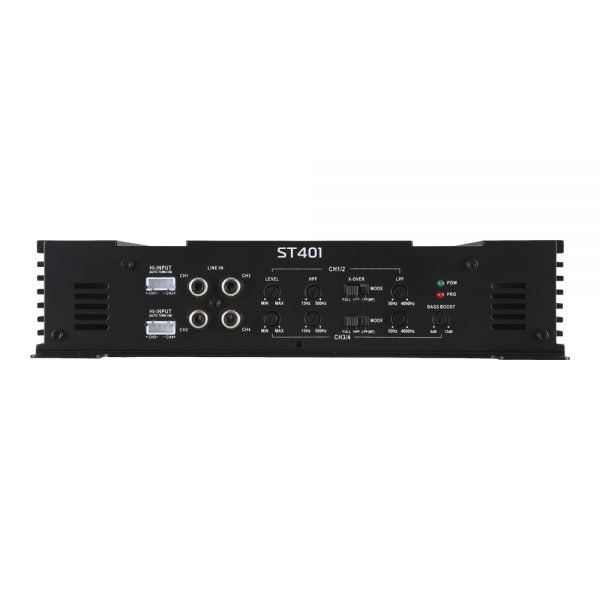

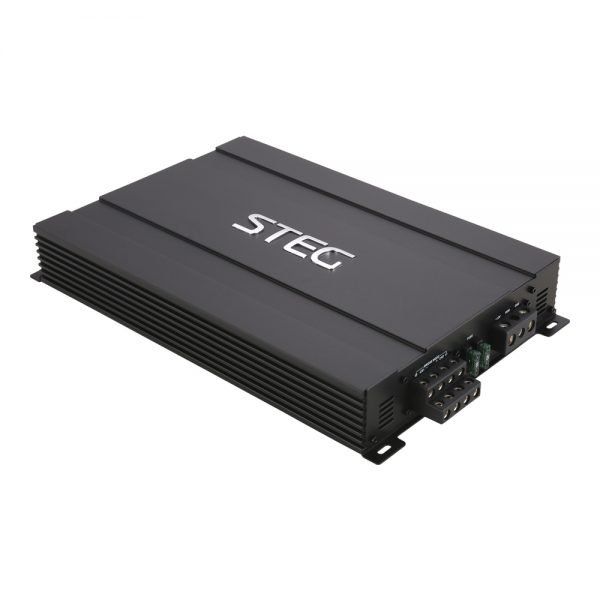

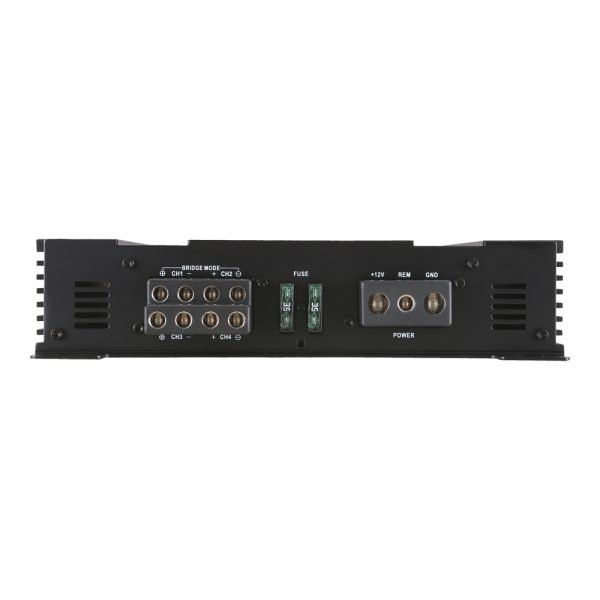

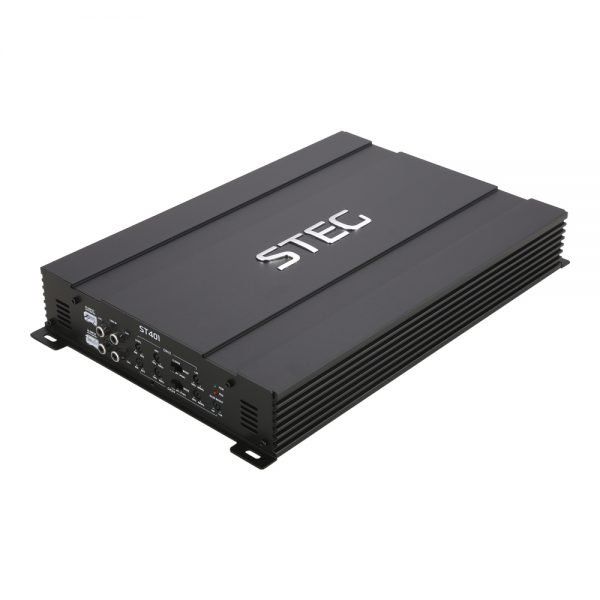

STEG ST401 STEREO POWER AMPLIFIER
POWER:
Power 4 ohms stereoWatt RMS – 14.4 Volt 90 x 4
Power 2 ohms stereoWatt RMS – 14.4 Volt 130 x 4
Power 4 ohms monoWatt RMS – 14.4 Volt 260 x 2
SENSITIVITY ‘ENTRANCE:
Volts RMS 0.5 – 9 V
HIGH Pass 15Hz – 500Hz
LOW Pass 50Hz – 4000Hz
Band Pass 15 Hz – 4000 Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
360 x 52 x 230 mm
WEIGHT:
3.41 Kg

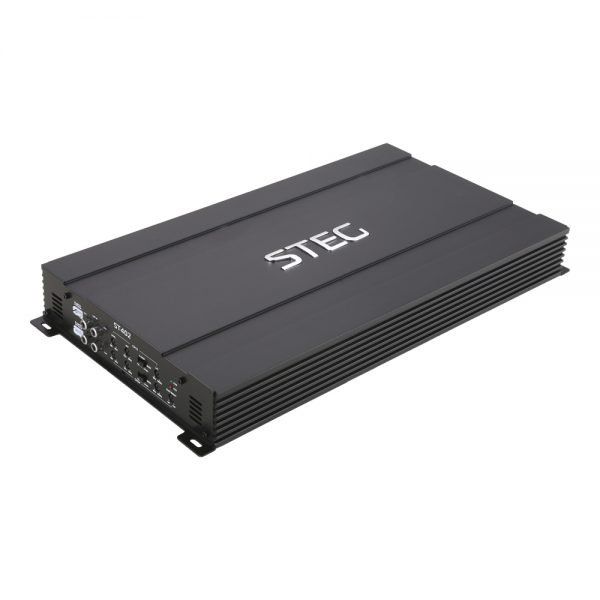

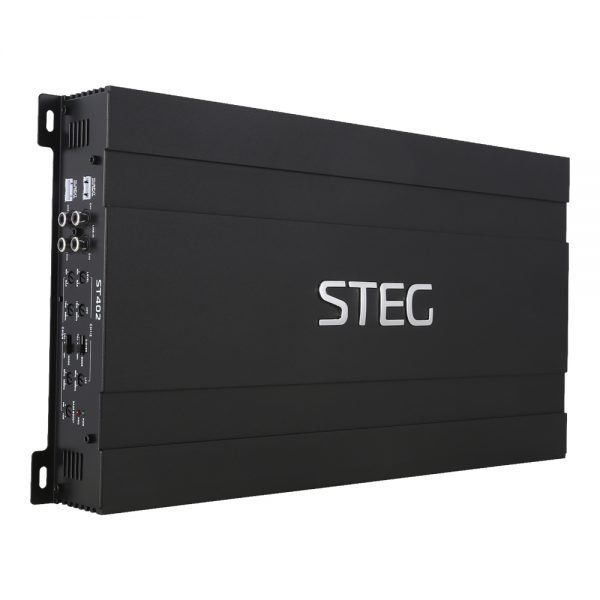

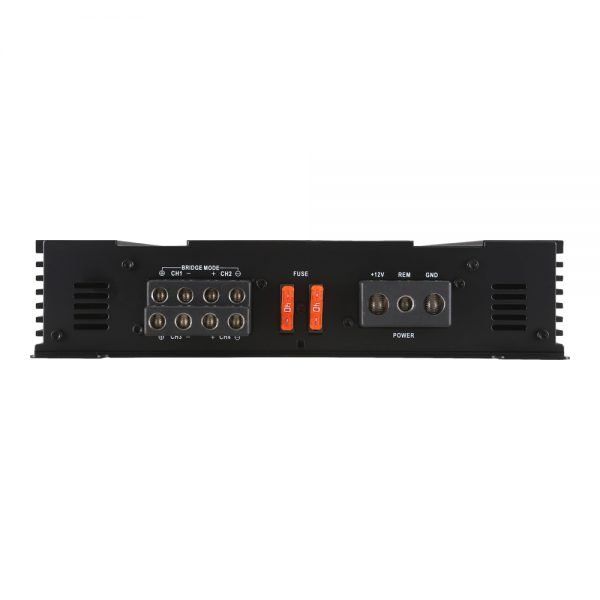

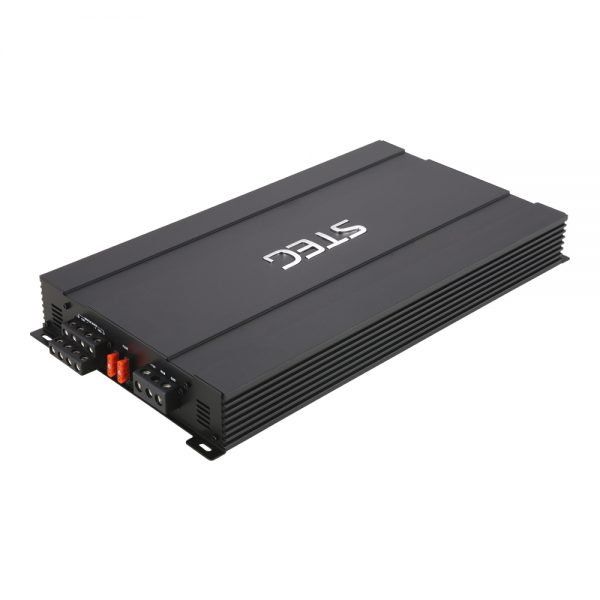

STEG ST402
POWER:
Power 4 ohms stereoWatt RMS – 14.4 Volt 120 x 4
Power 2 ohms stereoWatt RMS – 14.4 Volt 190 x 4
Power 4 ohms monoWatt RMS – 14.4 Volt 380 x 2
SENSITIVITY 'ENTRANCE:
Volts RMS 0.5 – 9 V
HIGH Pass 15Hz – 500Hz
LOW Pass 50Hz – 4000Hz
Band Pass 15 Hz – 4000 Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
440 x 52 x 230 mm
WEIGHT:
4.21 Kg
