STD series
STEG STD SERIES
Total overall harmony achieved with care of every detail. Even the smallest detail, is designed and built to suit its function the best way possible.

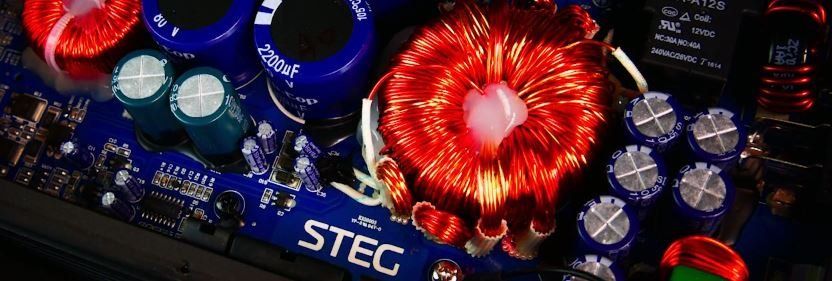

Precious materials, all-aluminum structure, finely processed and treated. The printed circuit board is constructed with materials that meet military and professional standard rules, reinforced with bars in gilded copper to handle the high currents involved.
- SOUND "AUDIOPHILE"
- MANAGED BY INDEPENDENT CIRCUIT PROTECTION
- DOUBLE ADJUSTMENT FREQUENCY X-OVER TECHNOLOGY
- DUAL DIFFERENTIAL INPUT SYSTEM WITH G.R.I.P.S.
- TECHNOLOGY STAGE AUDIOPHILE
- REMOTE CONTROL for mono apmplifier
- HI LEVEL INPUTS
- AUTO TUR ON (arrival of the audio signal power)

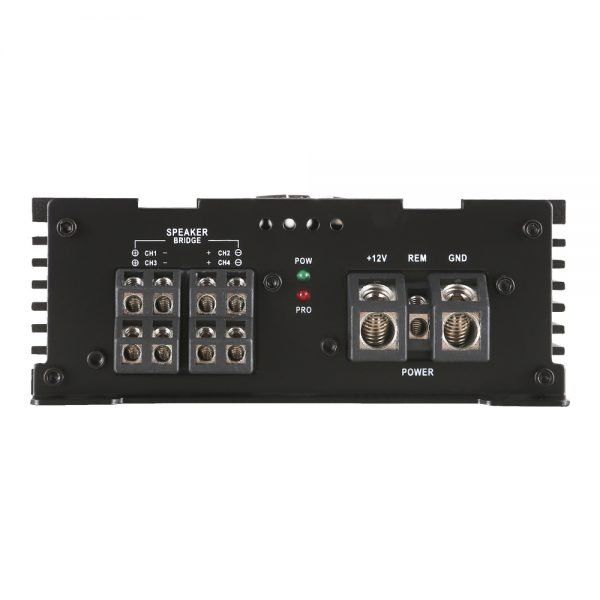

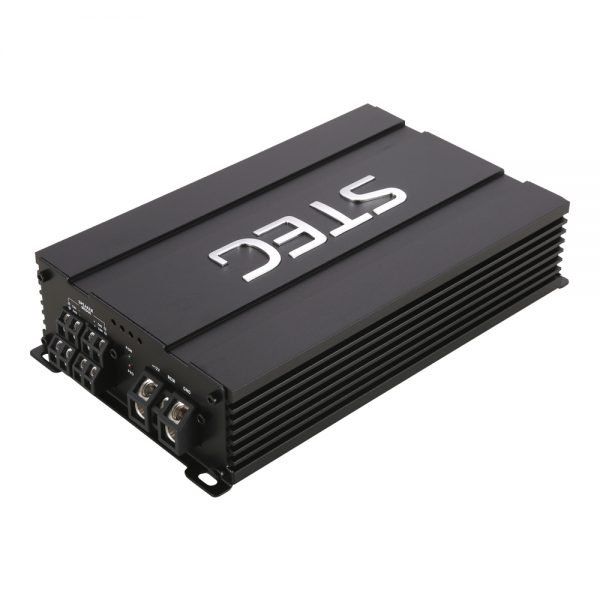

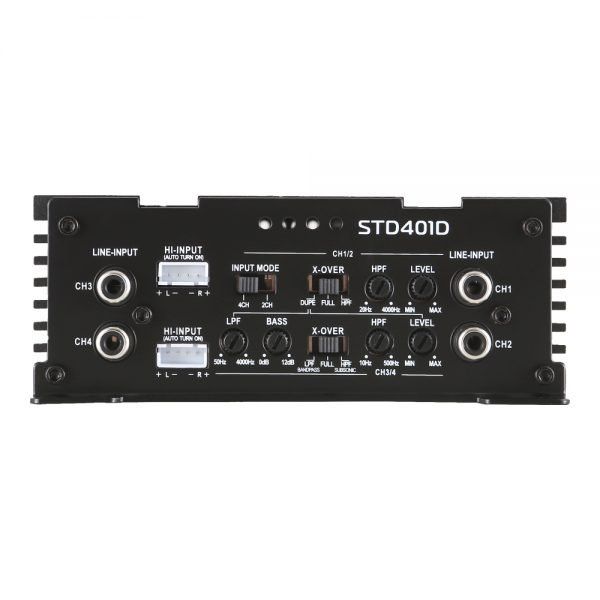

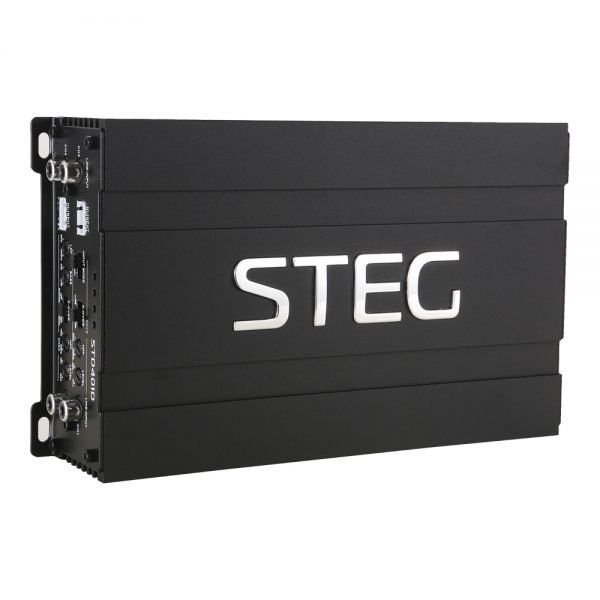

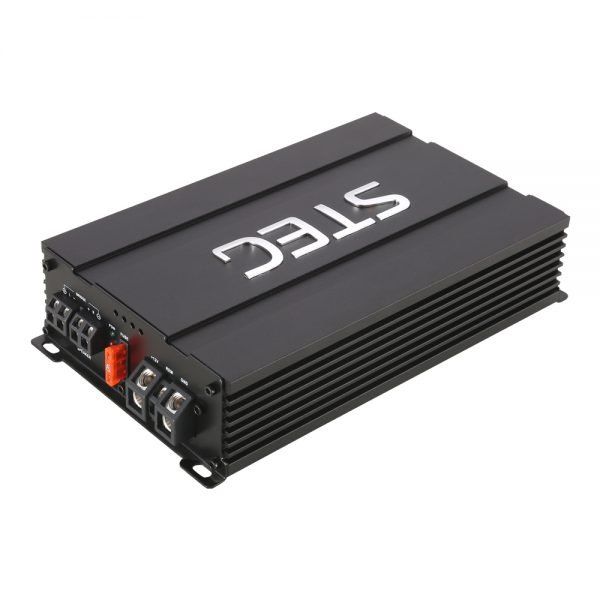

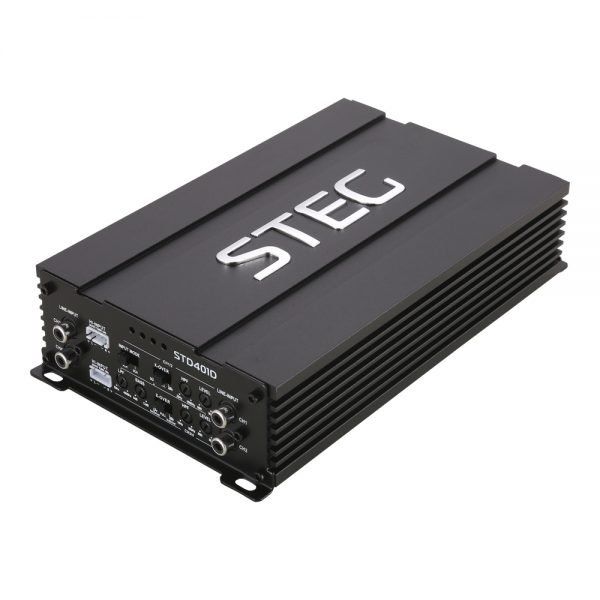

STEG STD401D
Power 4 ohms stereoWatt RMS – 14.4 Volt 75 x 4
Power 2 ohms stereoWatt RMS – 14.4 Volt 120 x 4
Power 4 ohms monoWatt RMS – 14.4 Volt 240 x 2
Power 4 ohms stereoWatt MAX – 14.4 Volt 150 x 4
Power 2 ohms stereoWatt MAX – 14.4 Volt 240x 4
Power 4 ohms monoWatt MAX – 14.4 Volt 480 x 2
INPUT SENSITIVITY:
Volts RMS 0.2 V – 6 V
HIGH Pass 20Hz – 4000Hz
LOW Pass 50Hz – 4000Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
135 x 52 x 230 mm
WEIGHT:
2.21 Kg

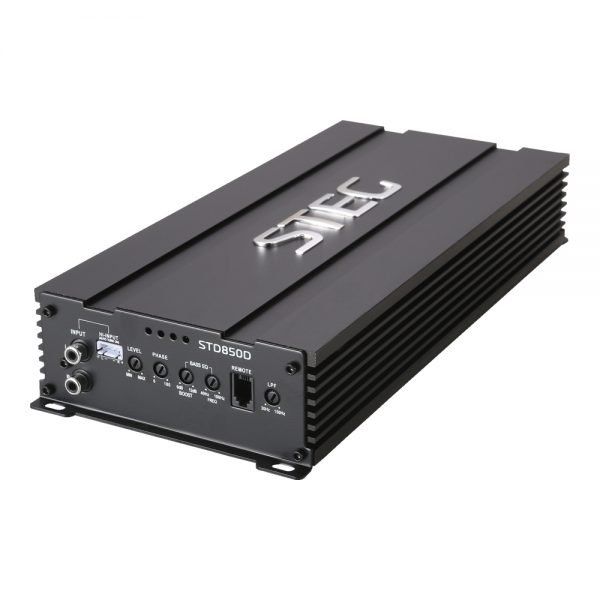

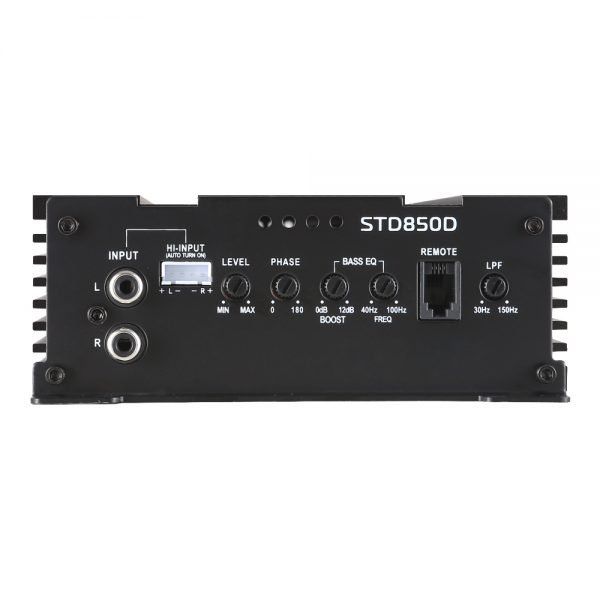

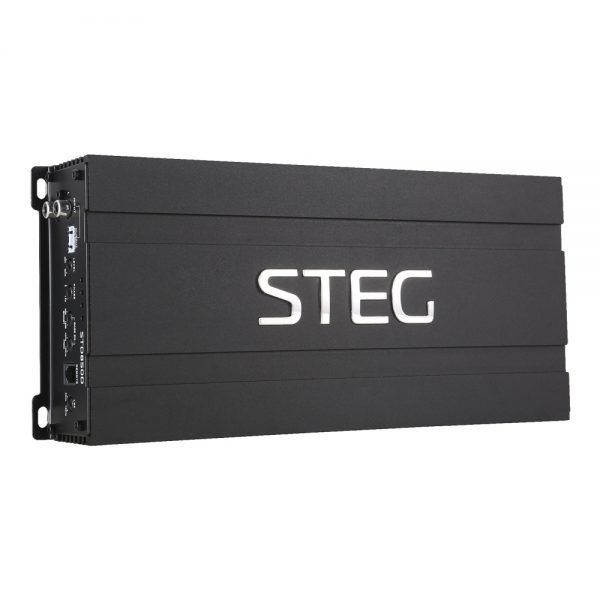

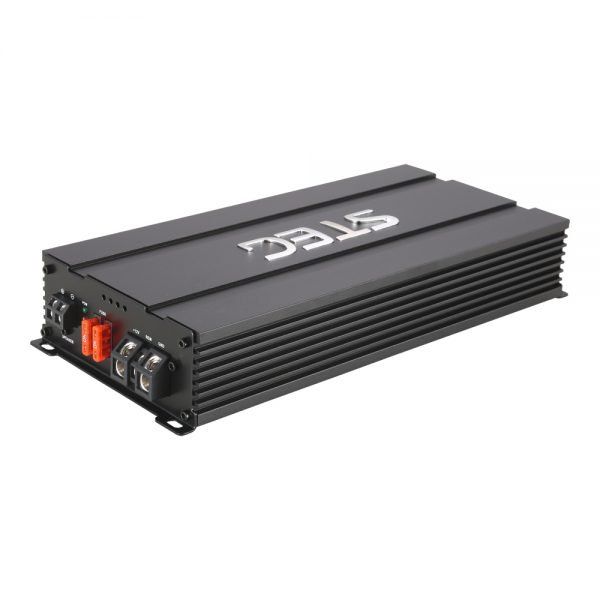

STEG STD850D ( niet leverbaar meer)
POWER:
Power 4 ohms stereoWatt RMS – 14.4 Volt 500 x 1
Power 2 ohms stereoWatt RMS – 14.4 Volt 850 x 1
Power 4 ohms stereoWatt MAX – 14.4 Volt 1000 x 1
Power 2 ohms stereoWatt MAX – 14.4 Volt 1700 x 1
SENSITIVITY 'ENTRANCE:
Volts RMS 0.2 V – 6 V
LOW Pass 30Hz – 150Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
135 x 52 x 300 mm
WEIGHT:
3.21 Kg

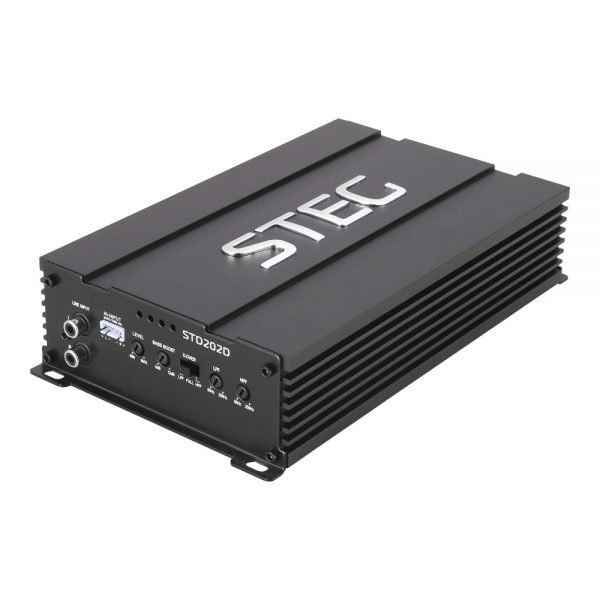

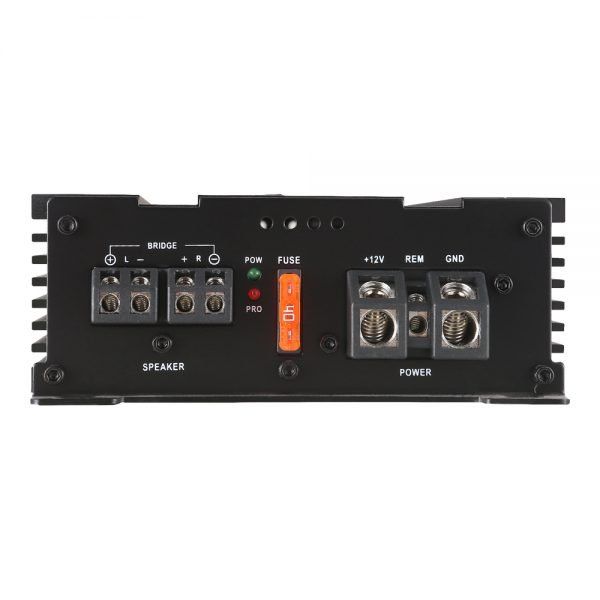

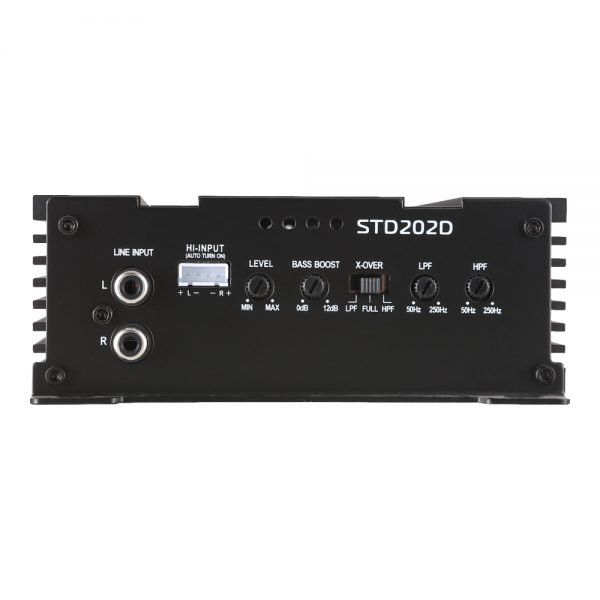

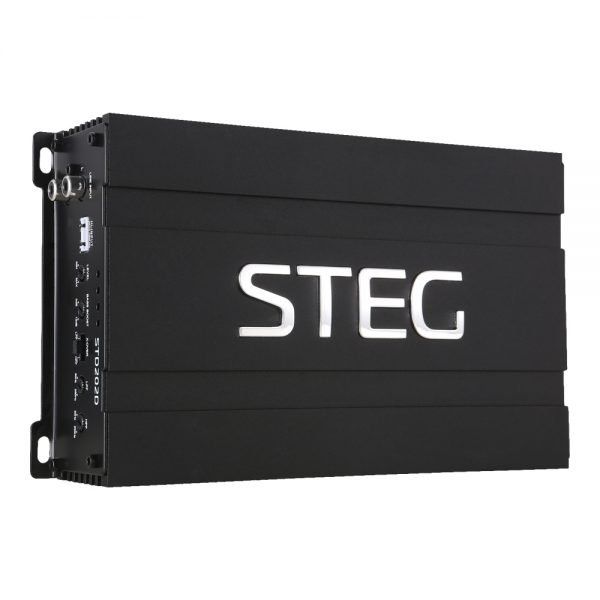

STEG STD202D
POWER:
Power 4 ohms stereoWatt RMS – 14.4 Volt 100 x 2
Power 2 ohms stereoWatt RMS – 14.4 Volt 195 x 2
Power 4 ohms monoWatt RMS – 14.4 Volt 390 x 1
Power 4 ohms stereoWatt MAX – 14.4 Volt 200 x 2
Power 2 ohms stereoWatt MAX – 14.4 Volt 390 x 2
Power 4 ohms monoWatt MAX – 14.4 Volt 780 x 1
INPUT SENSITIVITY:
Volts RMS 0.2 V – 6 V
HIGH Pass 15Hz – 250Hz
LOW Pass 50Hz – 250Hz
BASS BOOST 0 +12 dB
DIMENSIONS:
135 x 52 x 230 mm
WEIGHT:
2.21 Kg
